Analysis Results Datasets Using Open-Source Tools from the {pharmaverse}

A Hands-on workshop

Daniel D. Sjoberg and Becca Krouse

This workshop is brought to you by:

Sanofi

pharmaverse hex

Instructors

Headshot of Daniel Sjoberg

Daniel Sjoberg, Genentech

Headshot of Becca Krouse

Becca Krouse, GSK

Who are we?

What do we do?

Why are we here?

Workshop outline

Introduction to the Analysis Results Standard and ARDs with {cards}
Introduction to the {cardx} Package and ARD Extras
ARD to Tables with {gtsummary} and {tfrmt}

Introduction

This workshop is for you if…

You want to learn about ARDs
You want to learn about new tools for working with ARDs
You want to learn about new tools for making displays from ARDs
Familiarity with R helpful (but not required!)

Analysis Results Standard

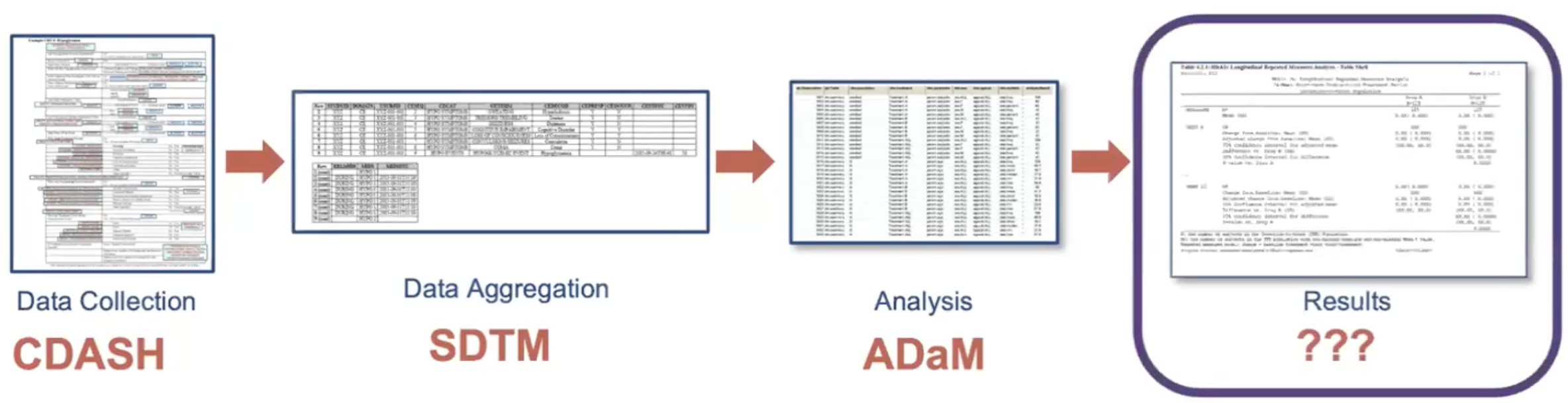

Analysis Results Standard (ARS)

Analysis Results Standard (ARS)

Emerging standard for prospectively encoding statistical analysis reporting pipeline in a machine-readable format.
Logical model that describes analysis results and associated metadata.

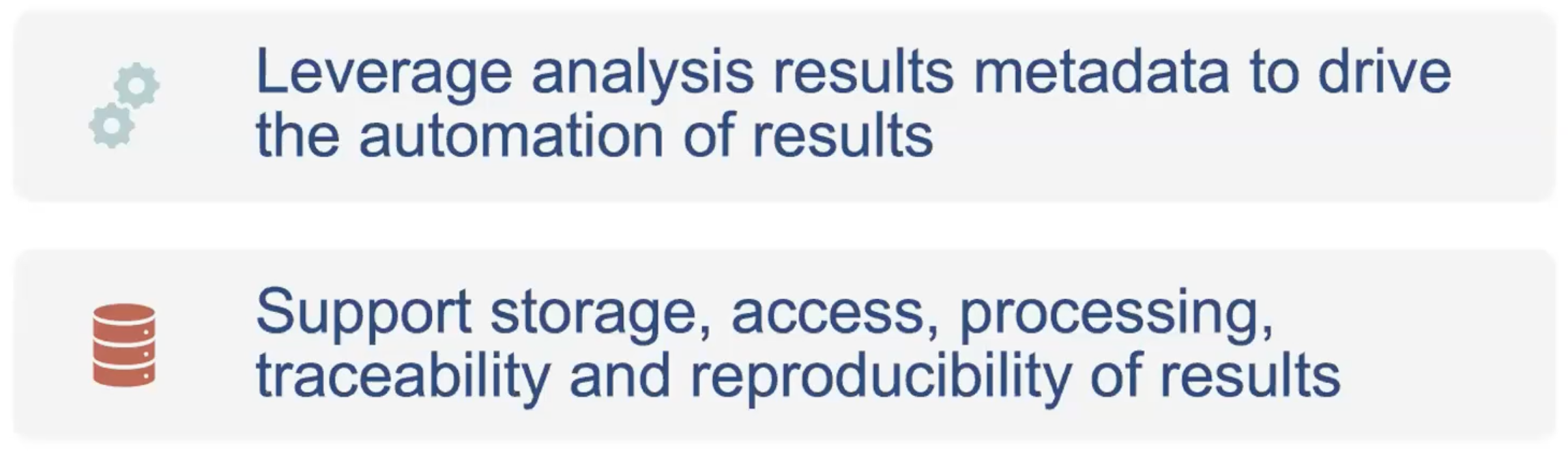

Primary objectives:
- Leverage analysis results metadata to drive automation of results
- Support storage, access, processing, traceability and reproducibility of results

Analysis Results Standard (ARS)

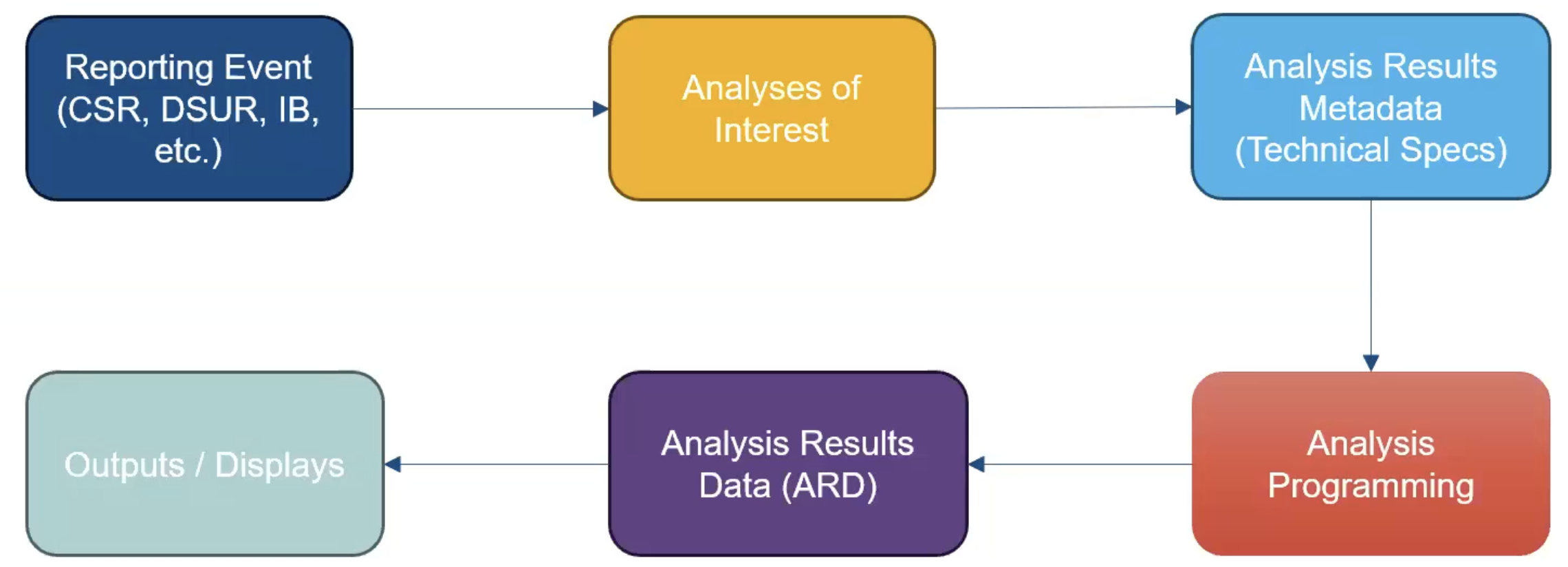

Example ARS Flow

The ARS provides a metadata-driven infrastructure for analysis

Analysis Results Standard (ARS)

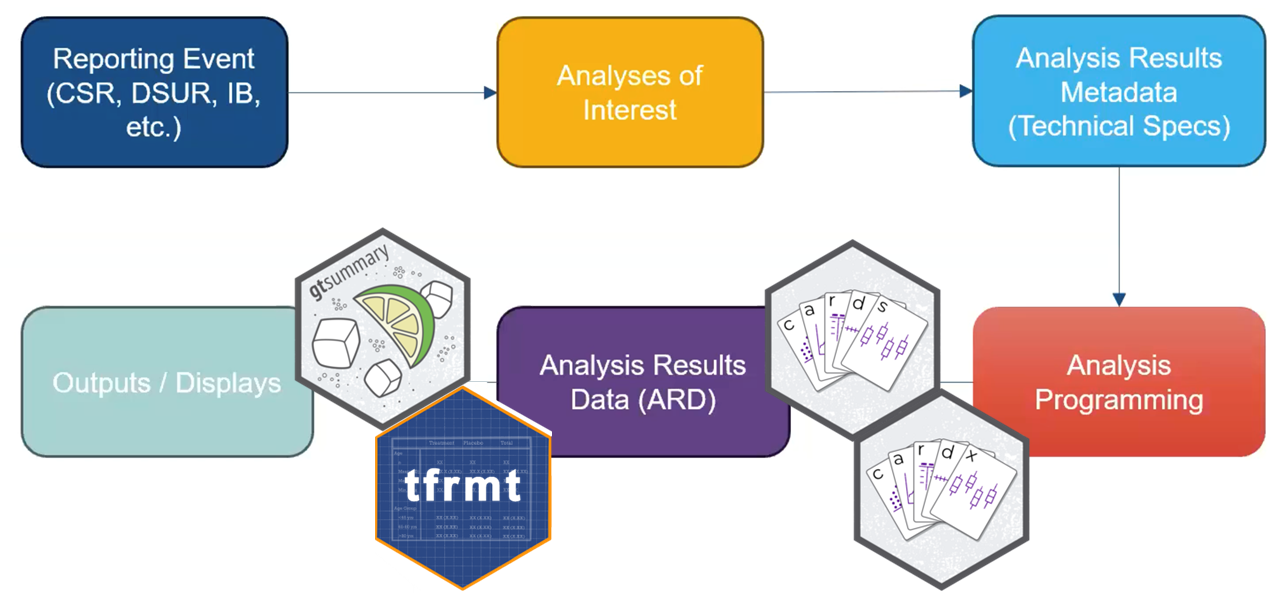

Example ARS Flow

The ARS provides a metadata-driven infrastructure for analysis
{cards} serves as the engine for the analysis

Analysis Results Data (ARD)

Encodes statistical analysis outcomes in a machine-readable format.
The ARD model specifies how statistical results are saved into a structured format.
The ARD can be used to to subsequently create tables and figures.
The ARD does not describe the layout of the results

Analysis Results Data (ARD)

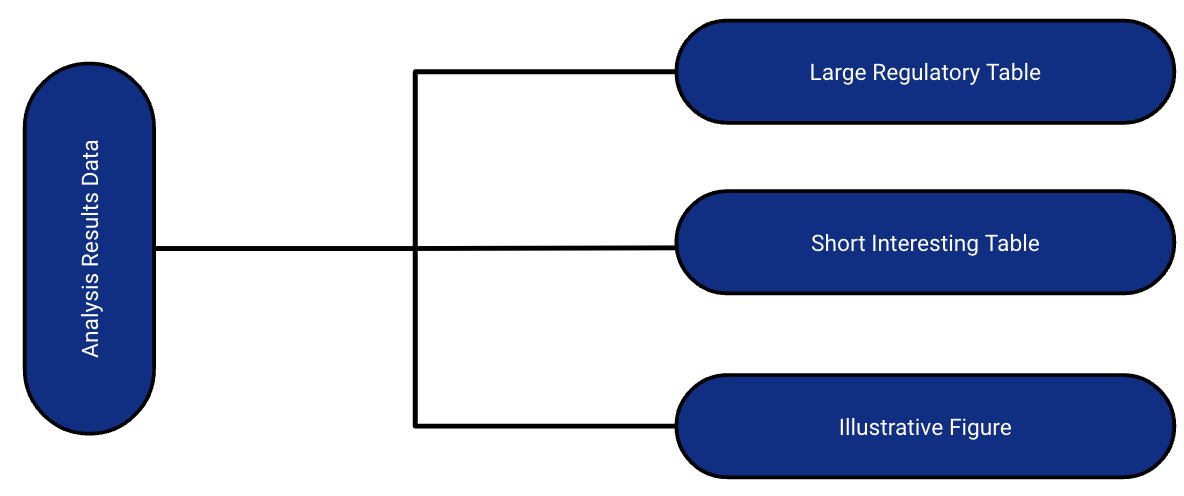

After the initial creation of an ARD, the results can later be re-used again and again for subsequent reporting needs.

A few notes about ARDs

Rethinking QC
- QC can be focused on the raw and/or formatted values
  - Optionnally, you don’t need to spend time trying to match formatted values
  - Note: QC will be more sensitive to floating point
Flexible data file types
- ARD can be saved as a dataset (rds, xpt, etc) or json file

ARDs using {cards}

{cards}: Introduction

Part of the Pharmaverse
Collaboration between Roche, GSK, Novartis, and Pfizer
Contains a variety of utilities for making ARDs
Can be used within the ARS workflow and separately
52K downloads per month 🤯

{cards}: `ard_continuous()`

library(cards)

# create ARD with default summary statistics
ADSL |>
  ard_continuous(
    variables = AGE
  )

{cards} data frame: 8 x 8

  variable   context stat_name stat_label   stat fmt_fn
1      AGE continuo…         N          N    254      0
2      AGE continuo…      mean       Mean 75.087      1
3      AGE continuo…        sd         SD  8.246      1
4      AGE continuo…    median     Median     77      1
5      AGE continuo…       p25         Q1     70      1
6      AGE continuo…       p75         Q3     81      1
7      AGE continuo…       min        Min     51      1
8      AGE continuo…       max        Max     89      1

ℹ 2 more variables: warning, error

{cards}: `ard_continuous()` by variable

by: summary statistics are calculated by all combinations of the by variables, including unobserved factor levels

ADSL |>
  ard_continuous(
    variables = AGE,
    by = ARM         # stats by treatment arm
  )

{cards} data frame: 24 x 10

   group1 group1_level variable stat_name stat_label   stat
1     ARM      Placebo      AGE         N          N     86
2     ARM      Placebo      AGE      mean       Mean 75.209
3     ARM      Placebo      AGE        sd         SD   8.59
4     ARM      Placebo      AGE    median     Median     76
5     ARM      Placebo      AGE       p25         Q1     69
6     ARM      Placebo      AGE       p75         Q3     82
7     ARM      Placebo      AGE       min        Min     52
8     ARM      Placebo      AGE       max        Max     89
9     ARM    Xanomeli…      AGE         N          N     84
10    ARM    Xanomeli…      AGE      mean       Mean 74.381

ℹ 14 more rows

ℹ Use `print(n = ...)` to see more rows

ℹ 4 more variables: context, fmt_fn, warning, error

{cards}: `ard_continuous()` statistics

statistic: specify univariate summary statistics. Accepts any function, base R, from a package, or user-defined.

cv <- function(x)  sd(x, na.rm = TRUE)/mean(x, na.rm = TRUE)

ADSL |>
  ard_continuous(
    variables = AGE,
    by = ARM,
    statistic = ~ list(cv = cv) # customize statistics
  )

{cards} data frame: 3 x 10

  group1 group1_level variable stat_name stat_label  stat
1    ARM      Placebo      AGE        cv         cv 0.114
2    ARM    Xanomeli…      AGE        cv         cv 0.106
3    ARM    Xanomeli…      AGE        cv         cv  0.11

ℹ 4 more variables: context, fmt_fn, warning, error

{cards}: `ard_continuous()` statistics

Customize the statistics returned for each variable

ADSL |>
  dplyr::mutate(AGE2 = AGE) |>
  ard_continuous(
    variables = c(AGE, AGE2),
    by = ARM,
    statistic = list(AGE = list(cv = cv),
                     AGE2 = continuous_summary_fns(c("mean","median")))
  )

{cards} data frame: 9 x 10

  group1 group1_level variable stat_name stat_label   stat
1    ARM      Placebo      AGE        cv         cv  0.114
2    ARM      Placebo     AGE2      mean       Mean 75.209
3    ARM      Placebo     AGE2    median     Median     76
4    ARM    Xanomeli…      AGE        cv         cv  0.106
5    ARM    Xanomeli…     AGE2      mean       Mean 74.381
6    ARM    Xanomeli…     AGE2    median     Median     76
7    ARM    Xanomeli…      AGE        cv         cv   0.11
8    ARM    Xanomeli…     AGE2      mean       Mean 75.667
9    ARM    Xanomeli…     AGE2    median     Median   77.5

ℹ 4 more variables: context, fmt_fn, warning, error

{cards}: `ard_continuous()` fmt_fn

Override the default formatting functions

ADSL |>
  ard_continuous(
    variables = AGE,
    by = ARM,
  ) |>
  update_ard_fmt_fn(stat_names = "mean", fmt_fn = 0) |>
  apply_fmt_fn()

{cards} data frame: 24 x 11

   group1 group1_level variable stat_name stat_label   stat stat_fmt
1     ARM      Placebo      AGE         N          N     86       86
2     ARM      Placebo      AGE      mean       Mean 75.209       75
3     ARM      Placebo      AGE        sd         SD   8.59      8.6
4     ARM      Placebo      AGE    median     Median     76     76.0
5     ARM      Placebo      AGE       p25         Q1     69     69.0
6     ARM      Placebo      AGE       p75         Q3     82     82.0
7     ARM      Placebo      AGE       min        Min     52     52.0
8     ARM      Placebo      AGE       max        Max     89     89.0
9     ARM    Xanomeli…      AGE         N          N     84       84
10    ARM    Xanomeli…      AGE      mean       Mean 74.381       74

ℹ 14 more rows

ℹ Use `print(n = ...)` to see more rows

ℹ 4 more variables: context, fmt_fn, warning, error

{cards}: `ard_categorical()`

includes n, %, N by default

ADSL |>
  ard_categorical(
    by = ARM,
    variables = AGEGR1
  )

{cards} data frame: 27 x 11

   group1 group1_level variable variable_level stat_name stat_label  stat
1     ARM      Placebo   AGEGR1            <65         n          n    14
2     ARM      Placebo   AGEGR1            <65         N          N    86
3     ARM      Placebo   AGEGR1            <65         p          % 0.163
4     ARM      Placebo   AGEGR1            >80         n          n    30
5     ARM      Placebo   AGEGR1            >80         N          N    86
6     ARM      Placebo   AGEGR1            >80         p          % 0.349
7     ARM      Placebo   AGEGR1          65-80         n          n    42
8     ARM      Placebo   AGEGR1          65-80         N          N    86
9     ARM      Placebo   AGEGR1          65-80         p          % 0.488
10    ARM    Xanomeli…   AGEGR1            <65         n          n    11

ℹ 17 more rows

ℹ Use `print(n = ...)` to see more rows

ℹ 4 more variables: context, fmt_fn, warning, error

Any unobserved levels of the variables will be present in the resulting ARD.

{cards}: Other Summary Functions

ard_dichotomous(): similar to ard_categorical(), but for dichotomous summaries
ard_hierarchical(): similar to ard_categorical(), but built for nested tabulations, e.g. AE terms within SOC
ard_complex(): similar to ard_continuous(), but the summary functions can be more complex and accepts other arguments like the full and subsetted (within the by groups) data sets.
ard_missing(): tabulates rates of missingness

The results from all these functions are entirely compatible with one another, and can be stacked into a single data frame. 🥞🥞🥞

{cards}: Other Functions

In addition to exporting functions to prepare summaries, {cards} exports many utilities for wrangling ARDs and creating new ARDs.

Constructing: bind_ard(), nest_for_ard(), check_ard_structure(), and many more

Wrangling: rename_ard_columns(), get_ard_statistics(), replace_null_statistic(), etc.

{cards}: Stacking utilities

data and .by are shared by all ard_* calls
Additional Options .overall, .missing, .attributes, and .total_n provide even more results
By default, summaries of the .by variable are included

ADSL |>
  ard_stack(
    .by = ARM,
    ard_continuous(variables = AGE, statistic = ~ continuous_summary_fns(c("mean","sd"))),
    ard_categorical(variables = AGEGR1, statistic = ~ "p")
  )

{cards} data frame: 24 x 11

   group1 group1_level variable variable_level stat_name stat_label   stat
1     ARM      Placebo      AGE                     mean       Mean 75.209
2     ARM      Placebo      AGE                       sd         SD   8.59
3     ARM      Placebo   AGEGR1            <65         p          %  0.163
4     ARM      Placebo   AGEGR1            >80         p          %  0.349
5     ARM      Placebo   AGEGR1          65-80         p          %  0.488
6     ARM    Xanomeli…      AGE                     mean       Mean 74.381
7     ARM    Xanomeli…      AGE                       sd         SD  7.886
8     ARM    Xanomeli…   AGEGR1            <65         p          %  0.131
9     ARM    Xanomeli…   AGEGR1            >80         p          %  0.214
10    ARM    Xanomeli…   AGEGR1          65-80         p          %  0.655

ℹ 14 more rows

ℹ Use `print(n = ...)` to see more rows

ℹ 4 more variables: context, fmt_fn, warning, error

Example: Demographics ARD

Exercise 1: Demographics ARD

First, compute the continuous summaries for AGE, BMI, HEIGHT, WEIGHT by TRT01A

ard_continuous(
  data = adsl,
  by = ,
  variables =
)

Exercise 1: Demographics ARD

First, compute the continuous summaries for AGE, BMI, HEIGHT, WEIGHT by TRT01A

ard_continuous(
  data = adsl,
  by = TRT01A,
  variables = c(AGE, BMI, HEIGHT, WEIGHT)
)

{cards} data frame: 96 x 10

   group1 group1_level variable stat_name stat_label   stat
1  TRT01A      Placebo      AGE         N          N     86
2  TRT01A      Placebo      AGE      mean       Mean 75.209
3  TRT01A      Placebo      AGE        sd         SD   8.59
4  TRT01A      Placebo      AGE    median     Median     76
5  TRT01A      Placebo      AGE       p25         Q1     69
6  TRT01A      Placebo      AGE       p75         Q3     82
7  TRT01A      Placebo      AGE       min        Min     52
8  TRT01A      Placebo      AGE       max        Max     89
9  TRT01A      Placebo      BMI         N          N     86
10 TRT01A      Placebo      BMI      mean       Mean 23.645

ℹ 86 more rows

ℹ Use `print(n = ...)` to see more rows

ℹ 4 more variables: context, fmt_fn, warning, error

Exercise 2: Demographics ARD

Next, compute the categorical summaries for AGEGR1, SEX, RACE, ETHNIC by TRT01A

ard_categorical(
  data = adsl,
  by = ,
  variables =
)

Exercise 2: Demographics ARD

Next, compute the categorical summaries for AGEGR1, SEX, RACE, ETHNIC by TRT01A

ard_categorical(
  data = adsl,
  by = TRT01A,
  variables = c(AGEGR1, SEX, RACE, ETHNIC)
)

{cards} data frame: 81 x 11

   group1 group1_level variable variable_level stat_name stat_label  stat
1  TRT01A      Placebo   AGEGR1            >64         n          n    72
2  TRT01A      Placebo   AGEGR1            >64         N          N    86
3  TRT01A      Placebo   AGEGR1            >64         p          % 0.837
4  TRT01A      Placebo   AGEGR1          18-64         n          n    14
5  TRT01A      Placebo   AGEGR1          18-64         N          N    86
6  TRT01A      Placebo   AGEGR1          18-64         p          % 0.163
7  TRT01A      Placebo      SEX              F         n          n    53
8  TRT01A      Placebo      SEX              F         N          N    86
9  TRT01A      Placebo      SEX              F         p          % 0.616
10 TRT01A      Placebo      SEX              M         n          n    33

ℹ 71 more rows

ℹ Use `print(n = ...)` to see more rows

ℹ 4 more variables: context, fmt_fn, warning, error

Exercise 3: Demographics ARD

Perform all of the summaries in a single ard_stack() call, including:

- summaries by TRT01A as performed above

- continuous summaries from part A for AGE, BMI, HEIGHT, and WEIGHT

- categorical summaries from part B for AGEGR1, SEX, RACE, ETHNIC

ard_stack(
  data = adsl,
  .by = ,

  # add ard_* calls here

)

Exercise 3: Demographics ARD

Perform all of the summaries in a single ard_stack() call, including:

- summaries by TRT01A as performed above

- continuous summaries from part A for AGE, BMI, HEIGHT, and WEIGHT

- categorical summaries from part B for AGEGR1, SEX, RACE, ETHNIC

ard_stack(
  data = adsl,
  .by = TRT01A,
  ard_continuous( variables = c(AGE, BMI, HEIGHT, WEIGHT)),
  ard_categorical(variables = c(AGEGR1, SEX, RACE, ETHNIC))
)

   group1 group1_level variable variable_level stat_name stat_label   stat
1  TRT01A      Placebo      AGE                        N          N     86
2  TRT01A      Placebo      AGE                     mean       Mean 75.209
3  TRT01A      Placebo      AGE                       sd         SD   8.59
4  TRT01A      Placebo      AGE                   median     Median     76
5  TRT01A      Placebo      AGE                      p25         Q1     69
6  TRT01A      Placebo      AGE                      p75         Q3     82
7  TRT01A      Placebo      AGE                      min        Min     52
8  TRT01A      Placebo      AGE                      max        Max     89
9  TRT01A      Placebo      BMI                        N          N     86
10 TRT01A      Placebo      BMI                     mean       Mean 23.645

Exercise 4: Demographics ARD

Also add the following pieces

- overall summaries for all of the variables

- total N

ard_stack(
  data = adsl,
  .by = TRT01A,
  ard_continuous( variables = c(AGE, BMI, HEIGHT, WEIGHT)),
  ard_categorical(variables = c(AGEGR1, SEX, RACE, ETHNIC)),
  .overall =  ,
  .total_n =
)

Exercise 4: Demographics ARD

Also add the following pieces

- overall summaries for all of the variables

- total N

ard_stack(
  data = adsl,
  .by = TRT01A,
  ard_continuous( variables = c(AGE, BMI, HEIGHT, WEIGHT)),
  ard_categorical(variables = c(AGEGR1, SEX, RACE, ETHNIC)),
  .overall = TRUE,
  .total_n = TRUE
)

{cards} data frame: 246 x 11

   group1 group1_level variable variable_level stat_name stat_label   stat
1  TRT01A      Placebo      AGE                        N          N     86
2  TRT01A      Placebo      AGE                     mean       Mean 75.209
3  TRT01A      Placebo      AGE                       sd         SD   8.59
4  TRT01A      Placebo      AGE                   median     Median     76
5  TRT01A      Placebo      AGE                      p25         Q1     69
6  TRT01A      Placebo      AGE                      p75         Q3     82
7  TRT01A      Placebo      AGE                      min        Min     52
8  TRT01A      Placebo      AGE                      max        Max     89
9  TRT01A      Placebo      BMI                        N          N     86
10 TRT01A      Placebo      BMI                     mean       Mean 23.645

ℹ 236 more rows

ℹ Use `print(n = ...)` to see more rows

ℹ 4 more variables: context, fmt_fn, warning, error

{cards}: Hierarchical Summary Functions

Displays for hierarchical data typically report on each level of the hierarchy (Any AE Overall, by System Organ Class, by Preferred Term)
Further, subject-level summaries require a different subset of the data each time. For example, to calculate Overall rates, we need to subset to 1 record per subject in ADAE.
ard_stack_hierarchical stacking functions simplify this multi-step process into a single step
- ard_stack_hierarchical(): calculating nested subject-level rates
- ard_stack_hierarchical_count(): calculating nested event-level counts

{cards}: `ard_stack_hierarchical()`

Calculate subject-level rates over every level of variables
The id argument is used to subset the data along the way

ard_stack_hierarchical(
  data = adae,
  variables = c(AESOC, AEDECOD),
  by = TRTA,
  id = USUBJID,
  denominator = adsl
)

{cards} data frame: 12 x 13

   group1 group1_level group2 group2_level variable variable_level stat_name
1    TRTA      Placebo   <NA>                 AESOC      GASTROIN…         n
2    TRTA      Placebo   <NA>                 AESOC      GASTROIN…         N
3    TRTA      Placebo   <NA>                 AESOC      GASTROIN…         p
4    TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      DIARRHOEA         n
5    TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      DIARRHOEA         N
6    TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      DIARRHOEA         p
7    TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      DYSPEPSIA         n
8    TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      DYSPEPSIA         N
9    TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      DYSPEPSIA         p
10   TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      HIATUS H…         n
11   TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      HIATUS H…         N
12   TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      HIATUS H…         p
   stat_label  stat
1           n    11
2           N    86
3           % 0.128
4           n     9
5           N    86
6           % 0.105
7           n     1
8           N    86
9           % 0.012
10          n     1
11          N    86
12          % 0.012

ℹ 4 more variables: context, fmt_fn, warning, error

{cards}: `ard_hierarchical_count()`

Calculate event-level counts over every level of variables

ard_stack_hierarchical_count(
  data = adae,
  variables = c(AESOC, AEDECOD),
  by = TRTA,
  denominator = adsl
)

{cards} data frame: 4 x 13

  group1 group1_level group2 group2_level variable variable_level stat_name stat_label stat
1   TRTA      Placebo   <NA>                 AESOC      GASTROIN…         n          n   14
2   TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      DIARRHOEA         n          n   10
3   TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      DYSPEPSIA         n          n    2
4   TRTA      Placebo  AESOC    GASTROIN…  AEDECOD      HIATUS H…         n          n    2

ℹ 4 more variables: context, fmt_fn, warning, error

Exercise 5: AE ARD

Within every combination of treatment group (TRT01A) and severity (AESEV), calculate the number and percentage of unique subjects (USUBJID) with at least one AE: (1) Overall, (2) By each SOC (AESOC), and (3) By each Preferred term (AEDECOD) within SOC (AESOC)

ard_stack_hierarchical(
  data = ,
  variables = ,
  by = ,
  id = ,
  denominator =
)

Exercise 5: AE ARD

ard_stack_hierarchical(
  data = adae,
  variables = c(AESOC, AEDECOD),
  by = c(TRTA, AESEV),
  id = USUBJID,
  denominator = adsl,
  over_variables = TRUE
)

ℹ Denominator set by number of rows in `denominator` data frame.
{cards} data frame: 351 x 15

   group1 group1_level group2 group2_level group3 group3_level                     variable variable_level stat_name stat_label  stat
1    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      GASTROIN…         n          n    10
2    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      GASTROIN…         N          N   254
3    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      GASTROIN…         p          % 0.039
4    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      GENERAL …         n          n     8
5    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      GENERAL …         N          N   254
6    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      GENERAL …         p          % 0.031
7    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      SKIN AND…         n          n    10
8    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      SKIN AND…         N          N   254
9    TRTA      Placebo  AESEV         MILD   <NA>                                     AESOC      SKIN AND…         p          % 0.039
10   TRTA      Placebo  AESEV         MILD   <NA>              ..ard_hierarchical_overall..           TRUE         n          n    25

ℹ 341 more rows
ℹ Use `print(n = ...)` to see more rows
ℹ 4 more variables: context, fmt_fn, warning, error

Analysis Results Datasets Using Open-Source Tools from the {pharmaverse}

This workshop is brought to you by:

Instructors

Workshop outline

Introduction

This workshop is for you if…

Analysis Results Standard

Analysis Results Standard (ARS)

Analysis Results Standard (ARS)

Analysis Results Standard (ARS)

Analysis Results Standard (ARS)

Analysis Results Data (ARD)

Analysis Results Data (ARD)

A few notes about ARDs

ARDs using {cards}

{cards}: Introduction

{cards}: ard_continuous()

{cards}: ard_continuous() by variable

{cards}: ard_continuous() statistics

{cards}: ard_continuous() statistics

{cards}: ard_continuous() fmt_fn

{cards}: ard_categorical()

{cards}: Other Summary Functions

{cards}: Other Functions

{cards}: Stacking utilities

Example: Demographics ARD

Exercise 1: Demographics ARD

Exercise 1: Demographics ARD

Exercise 2: Demographics ARD

Exercise 2: Demographics ARD

Exercise 3: Demographics ARD

Exercise 3: Demographics ARD

Exercise 4: Demographics ARD

Exercise 4: Demographics ARD

{cards}: Hierarchical Summary Functions

{cards}: ard_stack_hierarchical()

{cards}: ard_hierarchical_count()

Exercise 5: AE ARD

Exercise 5: AE ARD

{cards}: `ard_continuous()`

{cards}: `ard_continuous()` by variable

{cards}: `ard_continuous()` statistics

{cards}: `ard_continuous()` statistics

{cards}: `ard_continuous()` fmt_fn

{cards}: `ard_categorical()`

{cards}: `ard_stack_hierarchical()`

{cards}: `ard_hierarchical_count()`
