ARD to Tables with {tfrmt}

Daniel D. Sjoberg and Becca Krouse

Workshop outline

Introduction to the Analysis Results Standard and {cards}
Introduction to the {cardx} Package and ARD Extras
ARD to Tables with {gtsummary}
ARD to Tables with {tfrmt}

ARD-first Tables with {tfrmt}

Metadata-driven table formatting
Easily create new and modify existing tables
Input: ARD with raw, numeric values ({cards}!)
Output: Formatted table via {gt}

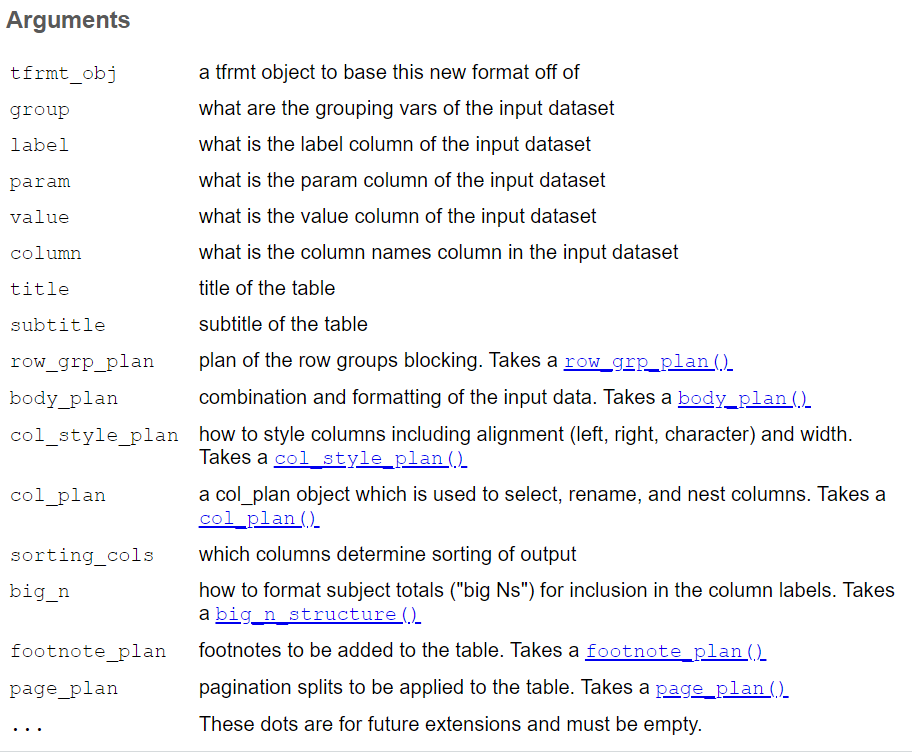

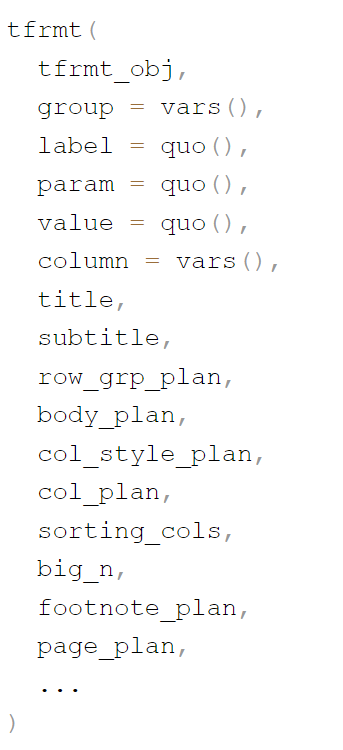

The {tfrmt} object

Pre-define the non-data components of your table
Pre-define how the data will be handled once added

A quick tour of the many uses of {tfrmt}

Use #1: Study planning (mocks)

library(tfrmt)

print_mock_gt(
  tfrmt = tfrmt_demog, # tfrmt
  .data = d_demog_mock # sample ARD
)|>
   gt_style_slides()

Demographics Table
	Placebo N = xx	Low Dose N = xx	High Dose N = xx
Age (y)
Mean	xxx.x	xxx.x	xxx.x
SD	xxx.xx	xxx.xx	xxx.xx
Median	xxx.x	xxx.x	xxx.x
Min	xxx.x	xxx.x	xxx.x
Max	xxx.x	xxx.x	xxx.x
<65 yrs	xxx (xx.x %)	xxx (xx.x %)	xxx (xx.x %)
65-80 yrs	xxx (xx.x %)	xxx (xx.x %)	xxx (xx.x %)
>80 yrs	xxx (xx.x %)	xxx (xx.x %)	xxx (xx.x %)
Sex
Male	xxx (xx.x %)	xxx (xx.x %)	xxx (xx.x %)
Female	xxx (xx.x %)	xxx (xx.x %)	xxx (xx.x %)
Baseline BMI
Mean	xxx.x	xxx.x	xxx.x
SD	xxx.xx	xxx.xx	xxx.xx
Median	xxx.x	xxx.x	xxx.x
Min	xxx.x	xxx.x	xxx.x
Max	xxx.x	xxx.x	xxx.x
<25	xxx (xx.x %)	xxx (xx.x %)	xxx (xx.x %)
25-<30	xxx (xx.x %)	xxx (xx.x %)	xxx (xx.x %)
>=30	xxx (xx.x %)	xxx (xx.x %)	xxx (xx.x %)

If no data is supplied, {tfrmt} will generate some under the hood

Use #2: Final analysis

library(tfrmt)

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = d_demog # true ARD
)|>
   gt_style_slides()

Demographics Table
	Placebo N = 86	Low Dose N = 84	High Dose N = 84
Age (y)
Mean	75.2	75.7	74.4
SD	8.59	8.29	7.89
Median	76.0	77.5	76.0
Min	52.0	51.0	56.0
Max	89.0	88.0	88.0
<65 yrs	14 (16.3 %)	8 ( 9.5 %)	11 (13.1 %)
65-80 yrs	42 (48.8 %)	47 (56.0 %)	55 (65.5 %)
>80 yrs	30 (34.9 %)	29 (34.5 %)	18 (21.4 %)
Sex
Male	33 (38.4 %)	34 (40.5 %)	44 (52.4 %)
Female	53 (61.6 %)	50 (59.5 %)	40 (47.6 %)
Baseline BMI
Mean	23.6	25.1	25.3
SD	3.67	4.27	4.16
Median	23.4	24.3	24.8
Min	15.1	17.7	13.7
Max	33.3	40.1	34.5
<25	59 (68.6 %)	47 (56.0 %)	44 (52.4 %)
25-<30	21 (24.4 %)	27 (32.1 %)	28 (33.3 %)
>=30	6 ( 7.0 %)	10 (11.9 %)	12 (14.3 %)

Full reuse of the original {tfrmt} object = reduced rework!

Use #3: Repurposed final table

library(tfrmt)

tfrmt_demog |>
  layer_tfrmt(
    tfrmt_demog_custom
  )|>
  print_to_gt(
    .data = d_demog
  ) |>
  gt::grp_pull(1)|>
   gt_style_slides()

Demographics Table
Safety Population
	High Dose (N = 84)	Low Dose (N = 84)	Placebo (N = 86)
Age (y)
Mean	74.4	75.7	75.2
SD	7.89	8.29	8.59
Median	76.0	77.5	76.0
Min	56.0	51.0	52.0
Max	88.0	88.0	89.0

<65 yrs	11 (13.1 %)	8 ( 9.5 %)	14 (16.3 %)
65-80 yrs	55 (65.5 %)	47 (56.0 %)	42 (48.8 %)
>80 yrs	18 (21.4 %)	29 (34.5 %)	30 (34.9 %)

Sex
Male	44 (52.4 %)	34 (40.5 %)	33 (38.4 %)
Female	40 (47.6 %)	50 (59.5 %)	53 (61.6 %)

Data collected at Screening Visit

Layering allows for custom tweaks while preserving the original metadata

Templates: the possibilities

Organization standards can be capture as templates

# create a template as a function
tfrmt_demog_org <- function(tfrmt_obj){

  tfrmt_demog_org <- tfrmt(
    # define standard formatting for org
  )

  layer_tfrmt(x = tfrmt_obj, y = tfrmt_demog_ta)
}

# Make a standard table
tfrmt_demog_org() |>
  print_to_gt(
    .data = demog_data
  )

Templates: the possibilities

Organization standards can be capture as templates
With layering, teams can customize only the bits that need changing

# create a template as a function
tfrmt_demog_ta <- function(tfrmt_obj){

  tfrmt_demog_ta <- tfrmt(
    # define the formatting specific to the therapeutic area
  )

  layer_tfrmt(x = tfrmt_obj, y = tfrmt_demog_ta)
}

# Layering multiple templates
tfrmt_demog_org() |>
  tfrmt_demog_ta() |>
  print_to_gt(
    .data = demog_data
  )

Templates: the possibilities

Organization standards can be capture as templates
With layering, teams can customize only the bits that need changing

# create a template as a function
tfrmt_demog_study <- function(tfrmt_obj){

  tfrmt_demog_study <- tfrmt(
    # define the formatting specific to the study
  )

  layer_tfrmt(x = tfrmt_obj, y = tfrmt_demog_study)
}

# Layering multiple templates
tfrmt_demog_org() |>
  tfrmt_demog_ta() |>
  tfrmt_demog_study() |>
  print_to_gt(
    .data = demog_data
  )

Save metadata for reuse

library(tfrmt)

tfrmt_demog |>
  tfrmt_to_json()

{
  "group": ["rowlbl1", "grp"],
  "label": ["rowlbl2"],
  "param": ["param"],
  "value": ["value"],
  "column": ["column"],
  "title": ["Demographics Table"],
  "body_plan": [
    {
      "group_val": [".default"],
      "label_val": [".default"],
      "param_val": ["n", "pct"],
      "frmt_combine": {
        "expression": ["{n} {pct}"],
        "frmt_ls": {
          "n": {
            "frmt": {
              "expression": ["xxx"],
              "missing": {},
              "scientific": {},
              "transform": {}
            }
          },
          "pct": {
            "frmt_when": {
              "frmt_ls": {
                "==100": [""],
                "==0": [""],
                "TRUE": {
                  "frmt": {
                    "expression": ["(xx.x %)"],
                    "missing": {},
                    "scientific": {},
                    "transform": {}
                  }
                }
              },
              "missing": {}
            }
          }
        },
        "missing": {}
      }
    },
    {
      "group_val": [".default"],
      "label_val": ["n"],
      "param_val": [".default"],
      "frmt": {
        "expression": ["xxx"],
        "missing": {},
        "scientific": {},
        "transform": {}
      }
    },
    {
      "group_val": [".default"],
      "label_val": ["Mean", "Median", "Min", "Max"],
      "param_val": [".default"],
      "frmt": {
        "expression": ["xxx.x"],
        "missing": {},
        "scientific": {},
        "transform": {}
      }
    },
    {
      "group_val": [".default"],
      "label_val": ["SD"],
      "param_val": [".default"],
      "frmt": {
        "expression": ["xxx.xx"],
        "missing": {},
        "scientific": {},
        "transform": {}
      }
    }
  ],
  "col_style_plan": [
    {
      "cols": [
        ["Placebo"],
        ["Low Dose"],
        ["High Dose"]
      ],
      "align": [".", ",", " "],
      "type": ["char"],
      "width": {}
    },
    {
      "cols": [
        ["rowlbl1"],
        ["rowlbl2"]
      ],
      "align": ["left"],
      "type": ["char"],
      "width": {}
    }
  ],
  "col_plan": {
    "col_plan": {
      "dots": [
        ["-grp"],
        ["-starts_with(\"ord\")"]
      ],
      ".drop": [false]
    }
  },
  "sorting_cols": ["ord1", "ord2"],
  "big_n": {
    "param_val": ["bigN"],
    "n_frmt": {
      "expression": ["<br>N = xx"],
      "missing": {},
      "scientific": {},
      "transform": {}
    },
    "by_page": [false]
  }
}

Create a language-agnostic JSON file
Load JSON back into R and recreate the table with json_to_tfrmt()

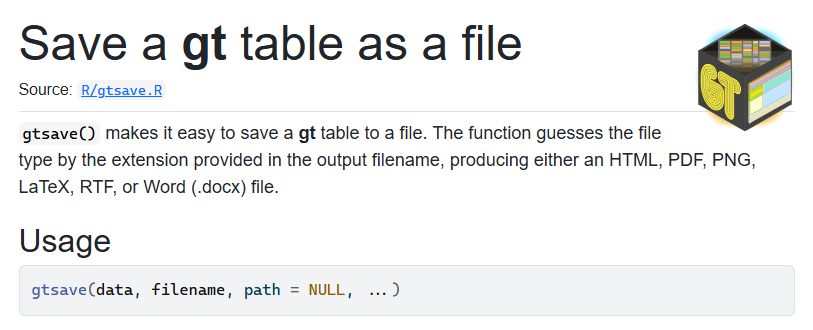

Saving display

tfrmt::print_to_gt() creates a {gt} object under the hood
You can export the table to a variety of formats using gt::gt_save()

Now, let’s format a display, 1 piece at a time

Creating a {tfrmt} table step-by-step

head(ard_demog)

# A tibble: 6 × 7
  TRT01A  variable    label    stat_name  stat  ord1  ord2
  <chr>   <chr>       <chr>    <chr>     <dbl> <dbl> <dbl>
1 Active  Age (years) Median   median       77     1    NA
2 Active  Age (years) [Q1, Q3] p25          71     1    NA
3 Active  Age (years) [Q1, Q3] p75          81     1    NA
4 Placebo Age (years) Median   median       76     1    NA
5 Placebo Age (years) [Q1, Q3] p25          69     1    NA
6 Placebo Age (years) [Q1, Q3] p75          82     1    NA

tfrmt_demog <- tfrmt(
  group = variable,
  label = label,
  column = TRT01A,
  param = stat_name,
  value = stat,
  sorting_cols = c(ord1, ord2)
)

Ensure placement of all values (Main)

tfrmt_demog <- tfrmt(
  group = variable,
  label = label,
  column = TRT01A,
  param = stat_name,
  value = stat,
  sorting_cols = c(ord1, ord2)
)

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
) |>
   gt_style_slides()

	ord1	ord2	Active	Placebo
Age (years)
Median	1	NA	77	76
[Q1, Q3]	1	NA	71, 81	69, 82
Age Group
18-64	2	1	19, 11.3095238095238	14, 16.2790697674419
>64	2	2	149, 88.6904761904762	72, 83.7209302325581
TRT01A
Active	NA	NA	168
Placebo	NA	NA		86

Ensure placement of all values (Big N)

tfrmt_demog <- tfrmt_demog |>
  tfrmt(
    big_n = big_n_structure(
      param_val = "bigN",
      n_frmt = frmt("<br>N = xx")
      )
  )

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
  )|>
   gt_style_slides()

	ord1	ord2	Active N = 168	Placebo N = 86
Age (years)
Median	1	NA	77	76
[Q1, Q3]	1	NA	71, 81	69, 82
Age Group
18-64	2	1	19, 11.3095238095238	14, 16.2790697674419
>64	2	2	149, 88.6904761904762	72, 83.7209302325581

Select and reorder columns

tfrmt_demog <- tfrmt_demog |>
  tfrmt(
    col_plan = col_plan(
      Placebo,
      Active,
      - starts_with("ord")
    )
  )

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
)|>
   gt_style_slides()

	Placebo N = 86	Active N = 168
Age (years)
Median	76	77
[Q1, Q3]	69, 82	71, 81
Age Group
18-64	14, 16.2790697674419	19, 11.3095238095238
>64	72, 83.7209302325581	149, 88.6904761904762

Format the data values - Basic

tfrmt_demog <- tfrmt_demog |>
  tfrmt(
    body_plan = body_plan(
      frmt_structure(
        group_val = ".default",
        label_val = ".default",
        frmt("x.xx"))
    )
  )

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
) |>
   gt_style_slides()

	Placebo N = 86	Active N = 168
Age (years)
Median	76.00	77.00
[Q1, Q3]	69.00, 82.00	71.00, 81.00
Age Group
18-64	14.00, 16.28	19.00, 11.31
>64	72.00, 83.72	149.00, 88.69

Format the data values - Advanced

tfrmt_demog <- tfrmt_demog |>
  tfrmt(
    body_plan = body_plan(
      frmt_structure(
        group_val = ".default",
        label_val = ".default",
        frmt_combine("{n} ({p}%)",
                     n = frmt("xx"),
                     p = frmt("xx.x")

        )
      )
    )
  )

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
  ) |>
   gt_style_slides()

	Placebo N = 86	Active N = 168
Age (years)
Median	76.00	77.00
[Q1, Q3]	69.00, 82.00	71.00, 81.00
Age Group
18-64	14 (16.3%)	19 (11.3%)
>64	72 (83.7%)	149 (88.7%)

Format the data values - Advanced

tfrmt_demog <- tfrmt_demog |>
  tfrmt(
    body_plan = body_plan(

      frmt_structure(
        group_val = ".default",
        label_val = "Median",
        frmt("xx.x")
      ),

      frmt_structure(
        group_val = ".default",
        label_val = ".default",
        frmt_combine(
          expression = "[{p25}, {p75}]",
          p25 = frmt("xx.x"),
          p75 = frmt("xx.x")
        )
      )

    )
  )

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
  ) |>
   gt_style_slides()

	Placebo N = 86	Active N = 168
Age (years)
Median	76.0	77.0
[Q1, Q3]	[69.0, 82.0]	[71.0, 81.0]
Age Group
18-64	14 (16.3%)	19 (11.3%)
>64	72 (83.7%)	149 (88.7%)

Align the columns

tfrmt_demog <- tfrmt_demog |>
  tfrmt(
    col_style_plan = col_style_plan(
      col_style_structure(
        col = c("Placebo",
                "Active"),
        align = " "
      )
    )
  )

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
  ) |>
   gt_style_slides()

	Placebo N = 86	Active N = 168
Age (years)
Median	76.0	77.0
[Q1, Q3]	[69.0, 82.0]	[71.0, 81.0]
Age Group
18-64	14 (16.3%)	19 (11.3%)
>64	72 (83.7%)	149 (88.7%)

Add footnotes

tfrmt_demog <- tfrmt_demog |>
  tfrmt(
    footnote_plan = footnote_plan(
      footnote_structure(
        "Pooled High and Low Dose",
        column_val = "Active"
      )
    )
  )

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
  ) |>
   gt_style_slides()

	Placebo N = 86	Active N = 168¹
Age (years)
Median	76.0	77.0
[Q1, Q3]	[69.0, 82.0]	[71.0, 81.0]
Age Group
18-64	14 (16.3%)	19 (11.3%)
>64	72 (83.7%)	149 (88.7%)
¹ Pooled High and Low Dose

Add titles

tfrmt_demog <- tfrmt_demog |>
  tfrmt(
    title = "Demographic Table",
    subtitle = "Safety Population"
  )

print_to_gt(
  tfrmt = tfrmt_demog,
  .data = ard_demog
  ) |>
   gt_style_slides()

Demographic Table
Safety Population
	Placebo N = 86	Active N = 168¹
Age (years)
Median	76.0	77.0
[Q1, Q3]	[69.0, 82.0]	[71.0, 81.0]
Age Group
18-64	14 (16.3%)	19 (11.3%)
>64	72 (83.7%)	149 (88.7%)
¹ Pooled High and Low Dose

Other features include:

Transform values in the formatting
Row group formatting
Pagination
Multi-positional column alignment
Templating

cards to tfrmt

{cards} includes a helper function shuffle_ard() to transform native {cards} output to display-ready data
This is also available as an argument .shuffle in ard_stack()

library(cards)

pharmaverseadam::adsl |>
  ard_categorical(
    by = TRT01A,
    variables = c("AGEGR1","SEX")
  )

   group1 group1_level variable variable_level stat_name stat_label  stat
1  TRT01A      Placebo   AGEGR1            >64         n          n    72
2  TRT01A      Placebo   AGEGR1            >64         N          N    86
3  TRT01A      Placebo   AGEGR1            >64         p          % 0.837
4  TRT01A    Screen F…   AGEGR1            >64         n          n    43
5  TRT01A    Screen F…   AGEGR1            >64         N          N    52
6  TRT01A    Screen F…   AGEGR1            >64         p          % 0.827
7  TRT01A    Xanomeli…   AGEGR1            >64         n          n    61
8  TRT01A    Xanomeli…   AGEGR1            >64         N          N    72
9  TRT01A    Xanomeli…   AGEGR1            >64         p          % 0.847
10 TRT01A    Xanomeli…   AGEGR1            >64         n          n    88

cards to tfrmt

{cards} includes a helper function shuffle_ard() to transform native {cards} output to display-ready data
This is also available as an argument .shuffle in ard_stack()

library(cards)

pharmaverseadam::adsl |>
  ard_categorical(
    by = TRT01A,
    variables = c("AGEGR1","SEX")
  ) |>
  shuffle_ard()

# A tibble: 48 × 6
   TRT01A         variable label context     stat_name   stat
   <chr>          <chr>    <chr> <chr>       <chr>      <dbl>
 1 Placebo        AGEGR1   >64   categorical n         72
 2 Placebo        AGEGR1   >64   categorical N         86
 3 Placebo        AGEGR1   >64   categorical p          0.837
 4 Placebo        AGEGR1   18-64 categorical n         14
 5 Placebo        AGEGR1   18-64 categorical N         86
 6 Placebo        AGEGR1   18-64 categorical p          0.163
 7 Screen Failure AGEGR1   >64   categorical n         43
 8 Screen Failure AGEGR1   >64   categorical N         52
 9 Screen Failure AGEGR1   >64   categorical p          0.827
10 Screen Failure AGEGR1   18-64 categorical n          9
# ℹ 38 more rows

cards to tfrmt

{cards} includes a helper function shuffle_ard() to transform native {cards} output to display-ready data
This is also available as an argument .shuffle in ard_stack()

library(cards)
library(tfrmt)

my_ard <- pharmaverseadam::adsl |>
  ard_categorical(
    by = TRT01A,
    variables = c("AGEGR1","SEX")
  ) |>
  shuffle_ard() |>
  dplyr::filter(stat_name %in% c("n","p")) |>
  dplyr::select(-context)

tfrmt(
  group = variable,
  label = label,
  column = TRT01A,
  param = stat_name,
  value = stat,
  body_plan = body_plan(
    frmt_structure(group_val = ".default",
                   label_val = ".default",
                   frmt_combine("{n} ({p}%)",
                                n = frmt("xx"),
                                p = frmt("xx",
                                         transform = ~.*100)))
  )
) |>
  print_to_gt(my_ard)|>
  gt_style_slides()|>
    gt::tab_options(
      table.font.size = 15
    )

	Placebo	Screen Failure	Xanomeline High Dose	Xanomeline Low Dose
AGEGR1
>64	72 (84%)	43 (83%)	61 (85%)	88 (92%)
18-64	14 (16%)	9 (17%)	11 (15%)	8 ( 8%)
SEX
F	53 (62%)	36 (69%)	35 (49%)	55 (57%)
M	33 (38%)	16 (31%)	37 (51%)	41 (43%)

The {tfrmtbuilder} App

Point-and-click interface for {tfrmt}
Ability to create new or modify existing display
Eases learning curve for new users
Empowers non-programmers

Exercise 🏃‍➡️

Open R file exercises/04-tables-tfrmt.R
Run the provided code, which will open the app in your browser
Complete the steps to further customize the table (hint: Edit tab):
1. Switch the order of treatment columns so Active is first (hint: Column Plan)
2. Change the footnote marks to letters instead of numbers (hint: Footnote Plan)
3. Split the table into 2 parts by setting a maximum of 3 rows (hint: Page Plan)
4. Export the table (hint: Export Tab)

Workshop recap

Introduction to the Analysis Results Standard and {cards}
Introduction to the {cardx} Package and ARD Extras
ARD to Tables with {gtsummary}
ARD to Tables with {tfrmt}

Slido

Wrap-up slido quiz

Learning more

{cards}: https://insightsengineering.github.io/cards/
{cardx}: https://insightsengineering.github.io/cardx/
{gtsummary}: https://www.danieldsjoberg.com/gtsummary/
{tfrmt}: https://gsk-biostatistics.github.io/tfrmt/
{tfrmtbuilder}: https://gsk-biostatistics.github.io/tfrmtbuilder/

Thank you for coming! 🎉
