Visualizing Survival Data with the {ggsurvfit} R Package

Daniel D. Sjoberg

{ggsurvfit}

Licensing

This work is licensed under Creative Commons Zero v1.0 Universal.

Authors

Daniel D. Sjoberg

• Senior Principal Data Scientist at Genentech.

• Previously, a Lead Data Science Manager at the Prostate Cancer Clinical Trials Consortium, and a Senior Biostatistician at Memorial Sloan Kettering Cancer Center in New York City.

• He enjoys R package development, creating many packages available on CRAN, R-Universe, and GitHub.

• Winner of the 2021 American Statistical Association (ASA) Innovation in Statistical Programming and Analytics award.

I’ve done LOTS of survival analysis and published the results in 100s of papers

Outline

1. What is survival analysis?

2. Visualizing Kaplan-Meier

3. Visualizing Competing Risks

4. Advanced Topics in {ggsurvfit}

   • Combining figures
   • How Risk Tables are constructed
   • CDISC Helpers

Survival Analysis

Clark, T., Bradburn, M., Love, S., & Altman, D. (2003). Survival analysis part I: Basic concepts and first analyses. 232-238. ISSN 0007-0920.

M J Bradburn, T G Clark, S B Love, & D G Altman. (2003). _Survival Analysis Part II: Multivariate data analysis – an introduction to concepts and methods. British Journal of Cancer, 89(3), 431-436.

Bradburn, M., Clark, T., Love, S., & Altman, D. (2003). Survival analysis Part III: Multivariate data analysis – choosing a model and assessing its adequacy and fit_. 89(4), 605-11.

Clark, T., Bradburn, M., Love, S., & Altman, D. (2003). Survival analysis part IV: Further concepts and methods in survival analysis. 781-786. ISSN 0007-0920.

• This is the briefest overview.

• For more details, review the resources below.

Survival Analysis

Survival times are data that measure follow-up time from a defined starting point to the occurrence of a given event, for example the time from the beginning to the end of a remission period or the time from the diagnosis of a disease to death. Standard statistical techniques cannot usually be applied because the data are often ‘censored’. A survival time is described as censored when there is a follow-up time but the event has not yet occurred.

Bewick V, Cheek L, Ball J. Statistics review 12: survival analysis. Crit Care. 2004 Oct;8(5):389-94.

Read this aloud, then rephrase and give examples

Survival Analysis

Because survival data are common in many fields, it also goes by other names.

Other Names

• Reliability analysis

• Duration analysis

• Event history analysis

• Time-to-event analysis

Examples

• Time from surgery to death

• Time from start of treatment to progression

• Time from HIV infection to development of AIDS

• Time to heart attack

• Time to onset of substance abuse

• Time to initiation of sexual activity

• Time to machine malfunction

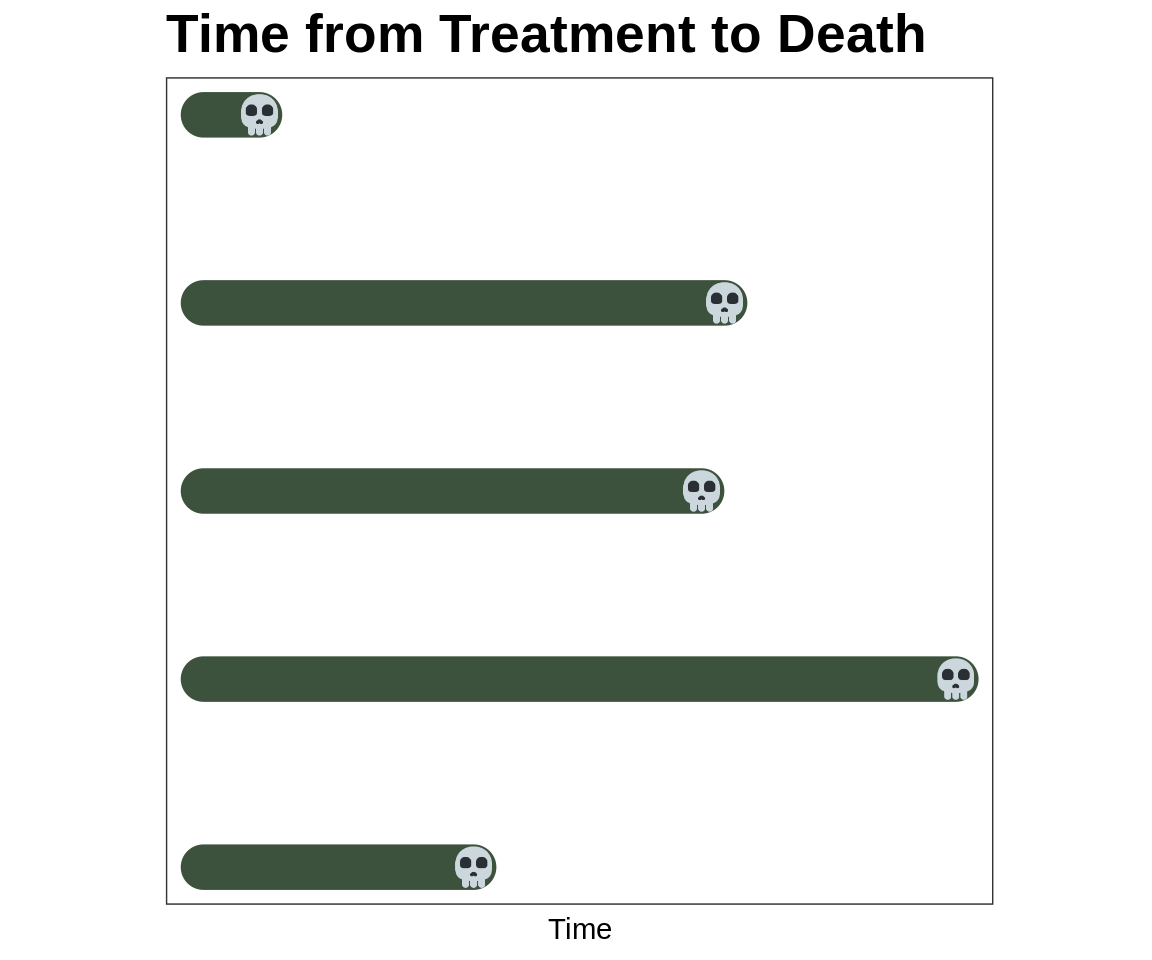

Survival Analysis, No Censoring

• The skulls are the time when each of these patients die

• We observe the follow-up in the solid line

• How can we summarize the time from treatment to death?

• We can use a simple mean, median, etc.

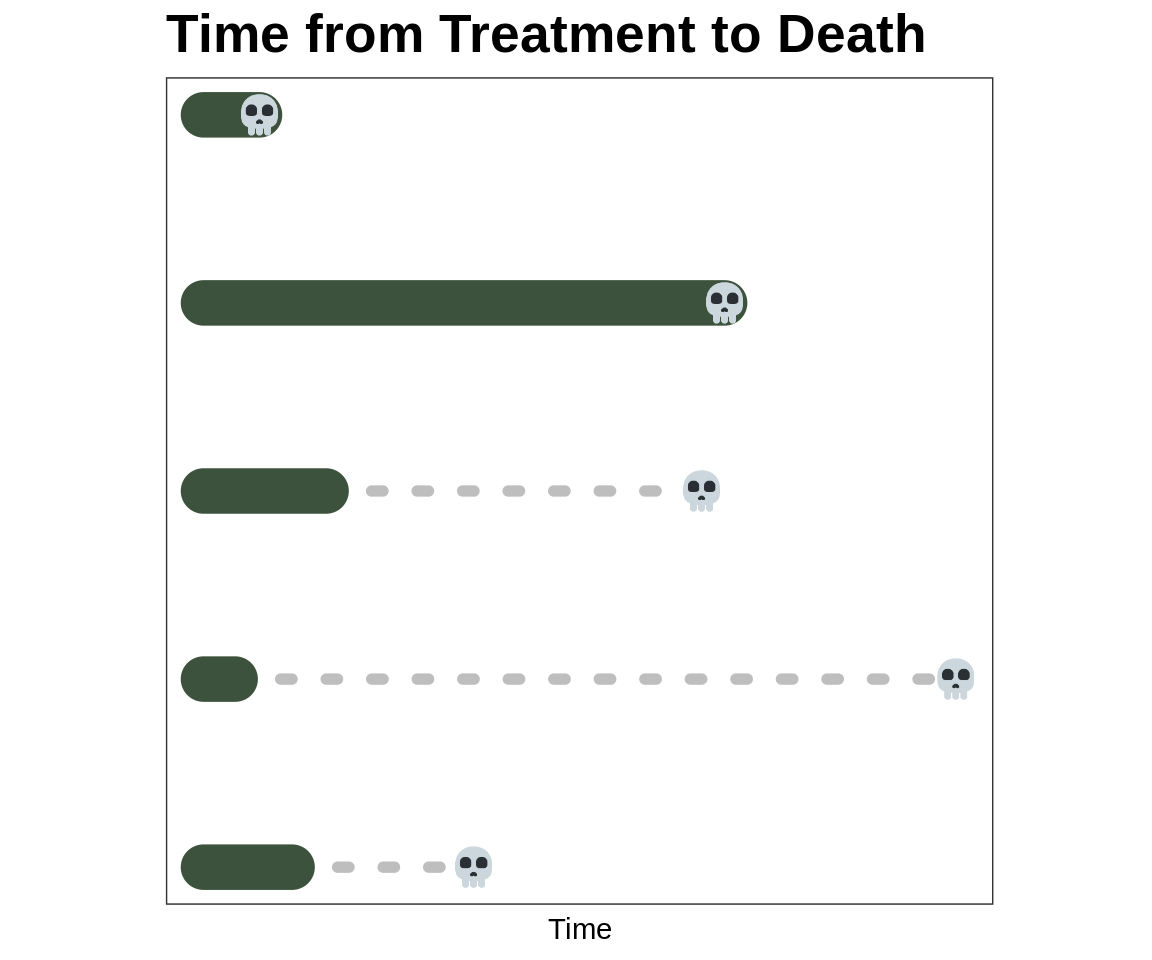

Survival Analysis, Censoring

• The skulls are the time when each of these patients die

• We observe the follow-up in the solid line

• The dashed line is unobserved

• How can we summarize the average time from treatment to death?

Censoring occurs if a subject has not experienced the event of interest by the end of data collection.

A subject may be censored due to:

• Loss to follow-up

• Withdrawal from study

• No event by end of fixed study period

When censoring is present, the analytic method MUST take this into account.

Survival Analysis Methods

Standard Method	Survival Method1
Means/Median/Percentiles	Kaplan-Meier Estimator
t-test/Rank-sum Test	Log-rank Test
Linear/Logistic Regression	Cox Proportional Hazards Regression2
1 There are multiple methods available tailored to specific cases and these are the most common.
2 We will not be covering regression methods today.

We’ll primarily be covering Kaplan-Meier methods today.

Why {ggsurvfit} ?

Why {ggsurvfit} ?

• Use ggplot2 functions

  • Each ggsurvfit function is written as a proper ggplot2 geom
  • Package functions woven with ggplot2 functions seamlessly
  • Don’t need to learn to style with ggsurvfit functions
  • Use your ggplot2 knowledge if you want to customize

• Limitless customization

  • Modify x-axis scales or any other plot feature and risk table will still align with plot

• Simple saving and export through ggplot2::ggsave()

• Ready to publish legends; raw variable names do not appear in the figure

Data

The following examples use a labeled version of the survival::colon data set.

Data

library(ggsurvfit)
library(gtsummary)
library(tidyverse)

df_colon <- df_colon |> select(time, status, surg)
df_colon

# A tibble: 929 × 3
    time status surg
   <dbl>  <dbl> <fct>
 1 2.65       1 Limited Time Since Surgery
 2 8.45       0 Limited Time Since Surgery
 3 1.48       1 Limited Time Since Surgery
 4 0.671      1 Extended Time Since Surgery
 5 1.43       1 Extended Time Since Surgery
 6 2.48       1 Limited Time Since Surgery
 7 0.627      1 Extended Time Since Surgery
 8 8.74       0 Limited Time Since Surgery
 9 8.69       0 Limited Time Since Surgery
10 9.06       0 Extended Time Since Surgery
# ℹ 919 more rows

Data

df_colon |>
  tbl_summary(statistic = status ~ "{n} / {N}") |>
  add_stat_label() |>
  bold_labels()

Characteristic	N = 929
Follow-up time, years, Median (IQR)	4.24 (1.01, 6.27)
Recurrence Status, n / N	468 / 929
Time from Surgery to Treatment, n (%)
Limited Time Since Surgery	682 (73%)
Extended Time Since Surgery	247 (27%)

Kaplan-Meier Basics

• How do we calculate the Kaplan-Meier estimator?

• They look the same, right?

sf1 <- survival::survfit(Surv(time, status) ~ surg, data = df_colon)
sf1

Call: survfit(formula = Surv(time, status) ~ surg, data = df_colon)

                                   n events median 0.95LCL 0.95UCL
surg=Limited Time Since Surgery  682    327     NA    4.77      NA
surg=Extended Time Since Surgery 247    141   3.03    2.01    5.55

sf2 <- ggsurvfit::survfit2(Surv(time, status) ~ surg, data = df_colon)
sf2

Call: survfit(formula = Surv(time, status) ~ surg, data = df_colon)

                                   n events median 0.95LCL 0.95UCL
surg=Limited Time Since Surgery  682    327     NA    4.77      NA
surg=Extended Time Since Surgery 247    141   3.03    2.01    5.55

• survival package uses survfit(), which works with ggsurvfit too!

• ggsurvfit uses survfti2() which has some benefits we will discuss

Kaplan-Meier Basics

What is the difference?

• ggsurvfit::survfit2() tracks the environment from which the call was made

• Accurately reconstruct or parse call at any point post estimation

• Call is parsed when p-values are reported and when labels are created

• Most functions in the package work with both survfit2() and survfit(); however, the output will be styled in a preferable format with survfit2().

waldo::compare(sf1, sf2)

`old` is length 17
`new` is length 18

`class(old)`: "survfit"
`class(new)`: "survfit2" "survfit"

`names(old)[15:17]`: "lower" "upper" "call"
`names(new)[15:18]`: "lower" "upper" "call" ".Environment"

`old$.Environment` is absent
`new$.Environment` is an environment

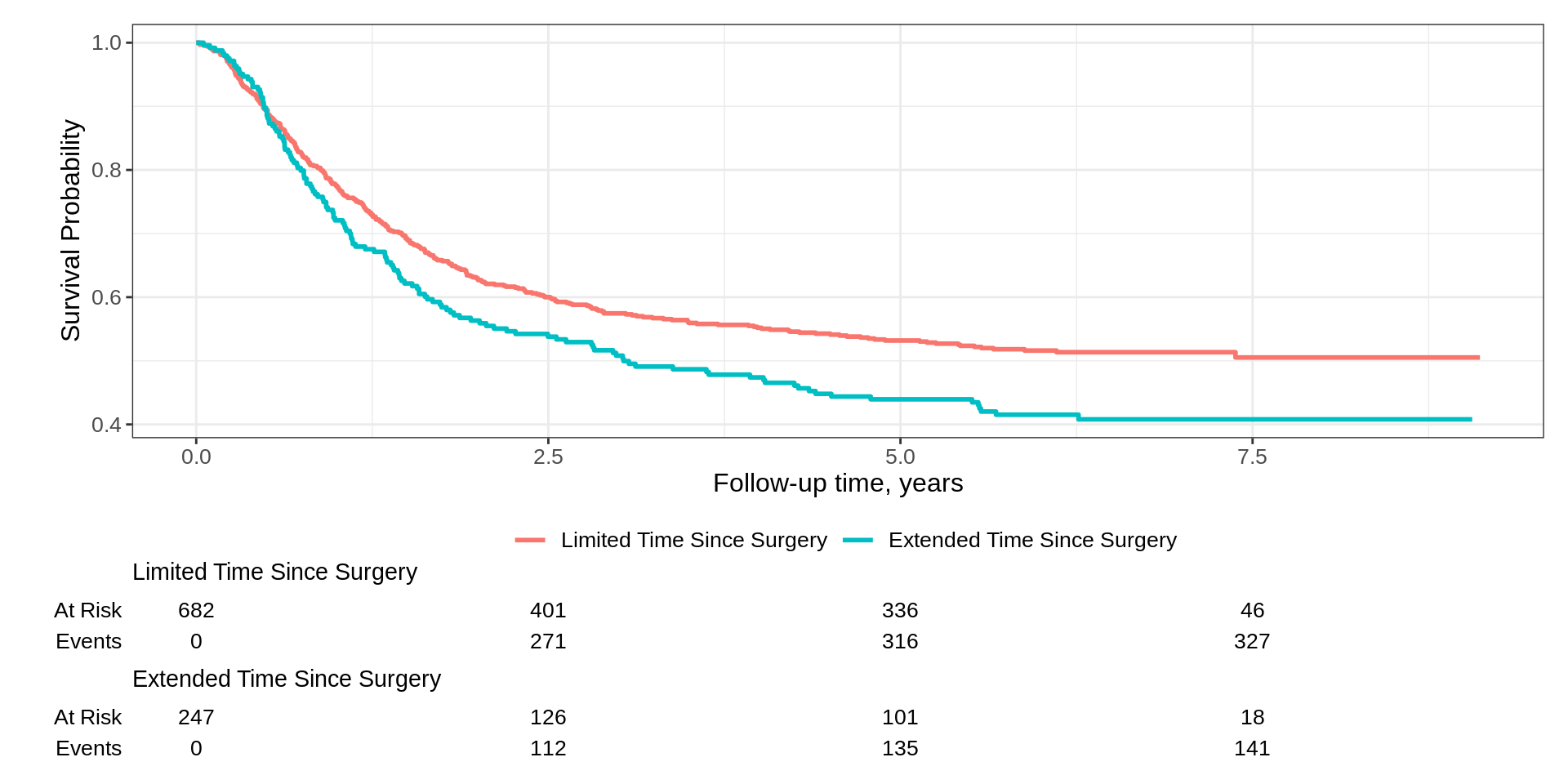

Basic Example

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(linewidth = 1) +
  add_risktable()

• The Good
  • Simple code and figure is nearly publishable
  • Risk table with both no. at risk and events easily added
  • x-axis label taken from the time column label
  • Can use ggplot2 + notation
• The Could-Be-Better
  • y-axis label is incorrect, and the range of axis is best at 0-100%
  • Axis padding a bit more than I prefer for a KM figure
  • x-axis typically has more tick marks for KM figure

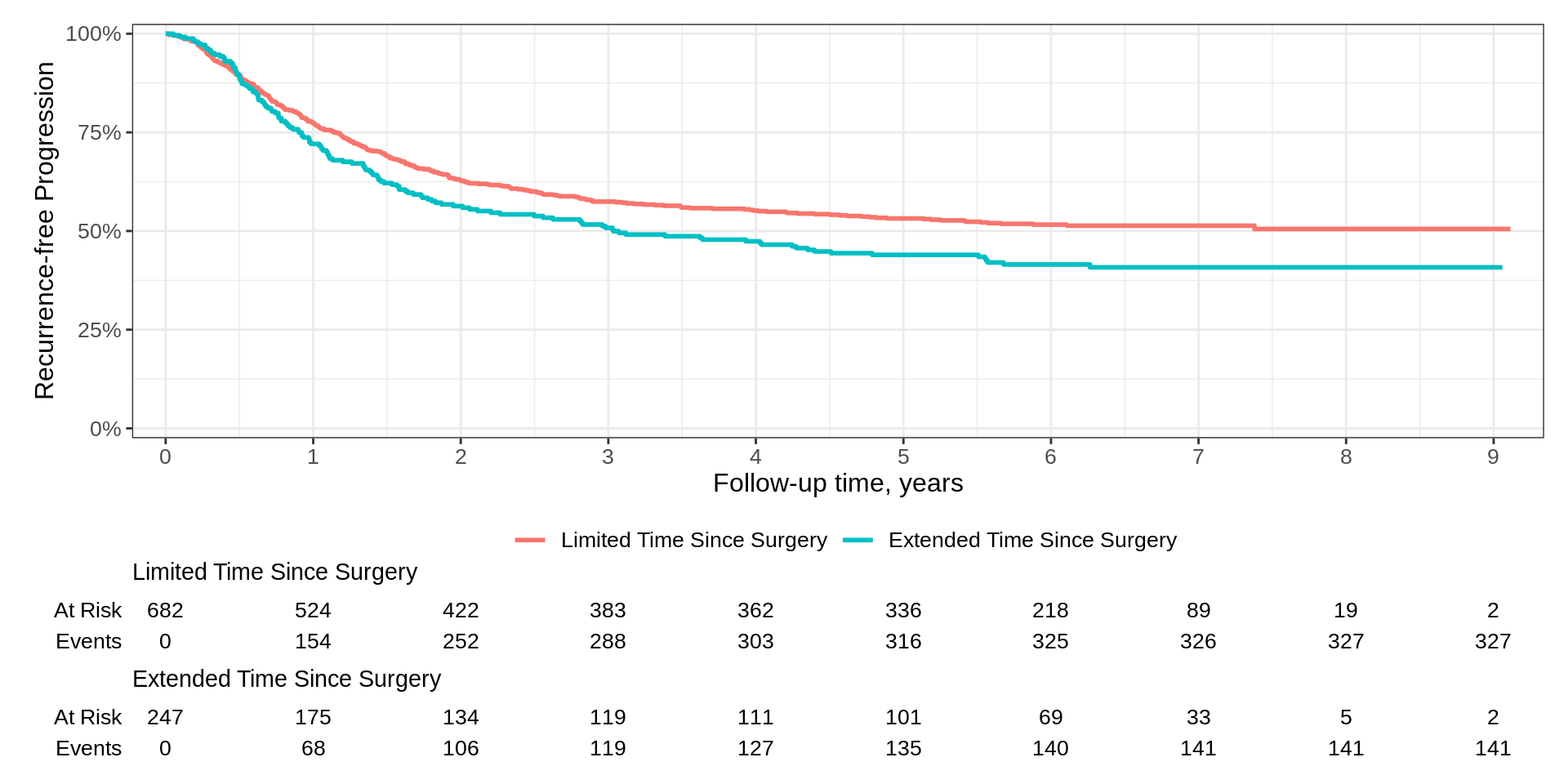

Basic Example

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(linewidth = 1) +
  add_risktable() +
  scale_ggsurvfit() +
  labs(y = "Recurrence-free Progression")

• Padding has been reduced and curves begin in the upper left corner of plot

• x-axis reports additional time points (and as a result, the risk table as well)

• We updated the y-axis label weaving standard ggplot2 functions

Basic Example

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(linewidth = 1) +
  add_risktable() +
  scale_ggsurvfit() +
  labs(y = "Recurrence-free Progression") +
  ggeasy::easy_move_legend("top")

• Padding has been reduced and curves begin in the upper left corner of plot

• x-axis reports additional time points (and as a result, the risk table as well)

• We updated the y-axis label weaving standard ggplot2 functions

• We can even use ggplot2-extender functions

Basic Example, transformation

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(type = "risk", linewidth = 1) +
  add_risktable() +
  scale_ggsurvfit() +
  labs(y = "Recurrence-free Progression")

Basic Example

• What is scale_ggsurvfit()?

scale_y_continuous(expand = c(0.025, 0), limits = c(0, 1), label = scales::label_percent())
scale_x_continuous(expand = c(0.015, 0), n.breaks = 8)

• If you use this function, you must include all scale specifications that would appear in scale_x_continuous() or scale_y_continuous()

• Do not call scale_x_continuous() or scale_y_continuous() along with scale_ggsurvfit(): scales are not additive, rather they replace existing scales.

• For example, it’s common you’ll need to specify the x-axis break points. scale_ggsurvfit(x_scales=list(breaks=0:9))

• You’ll see that I am using scale_ggsurvfit() pretty often throughout the presentation.

• This is the value for survival figures.

• The scales are modified depending on what type of curve is being presented.

Additional examples

{ggsurvfit} defaults

gg_default <-
  survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(size = 1) +
  add_confidence_interval() +
  labs(title = "Default")

gg_default

{ggplot2} styled

gg_styled <-
  gg_default +
  coord_cartesian(xlim = c(0, 8)) +
  scale_y_continuous(
    limits = c(0, 1),
    labels = scales::percent,
    expand = c(0.01, 0)
  ) +
  scale_x_continuous(breaks = 0:9, expand = c(0.02, 0)) +
  scale_color_manual(values = c('#54738E', '#82AC7C')) +
  scale_fill_manual(values = c('#54738E', '#82AC7C')) +
  theme_minimal() +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(ncol = 1)) +
  labs(
    title = "{ggplot2} styled",
    y = "Percentage Survival"
  )

gg_styled

{ggplot2} styled

Risk tables

{ggsurvfit} defaults

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(size = 1) +
  add_risktable()

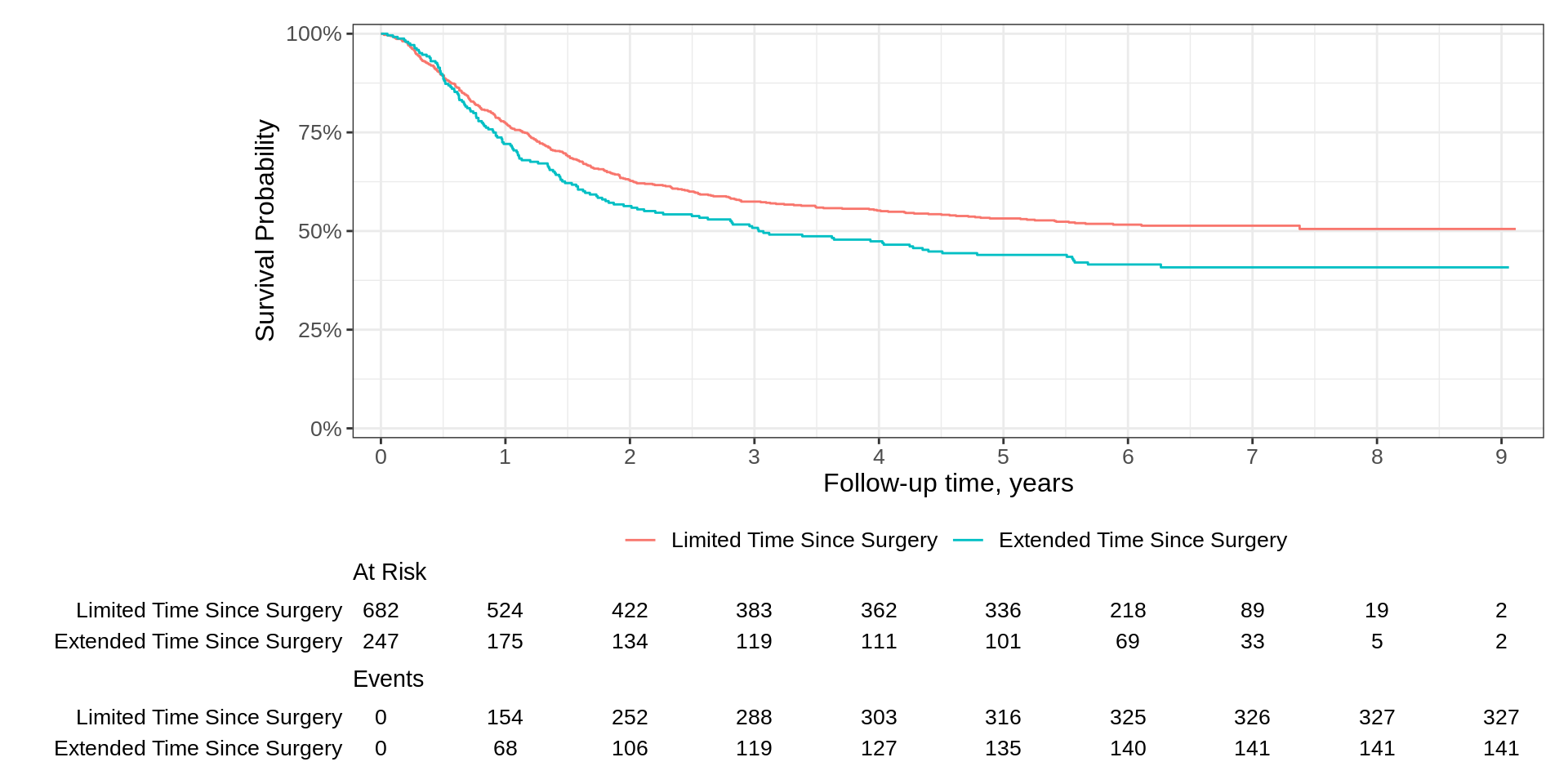

Group by statistic or strata

ggrisktable <-
  survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit() +
  scale_ggsurvfit() +
  add_risktable(risktable_group = "risktable_stats")
ggrisktable

Color encoding strata

ggrisktable +
  add_risktable_strata_symbol(symbol = "\U25CF", size = 12)

Customizing the risktable statistics

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit() +
  add_risktable(risktable_stats = "{n.risk} ({cum.event})")

Quantiles

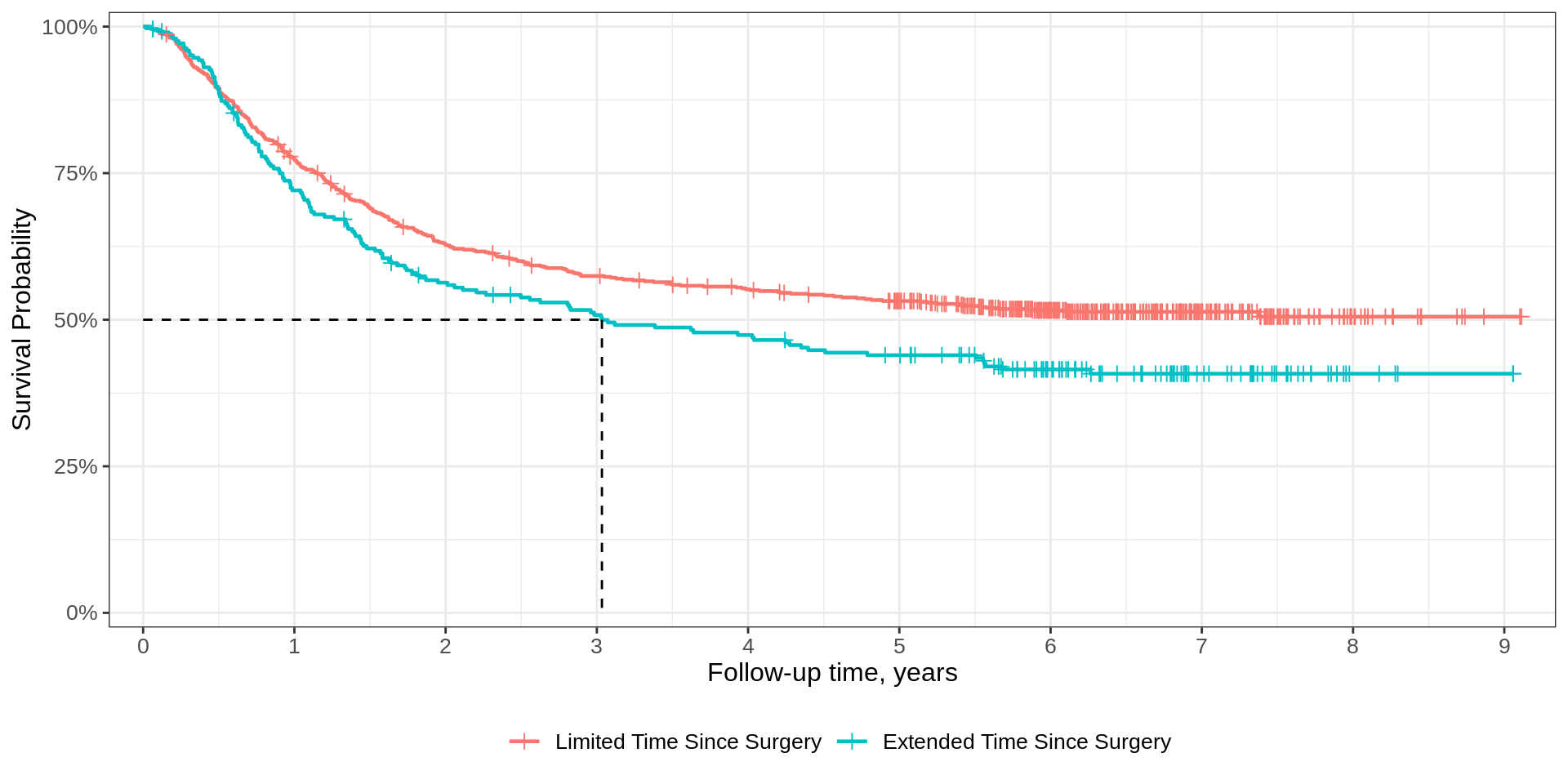

Median summary

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(linewidth = 0.8) +
  add_censor_mark() +
  add_quantile(y_value = 0.5) +
  scale_ggsurvfit()

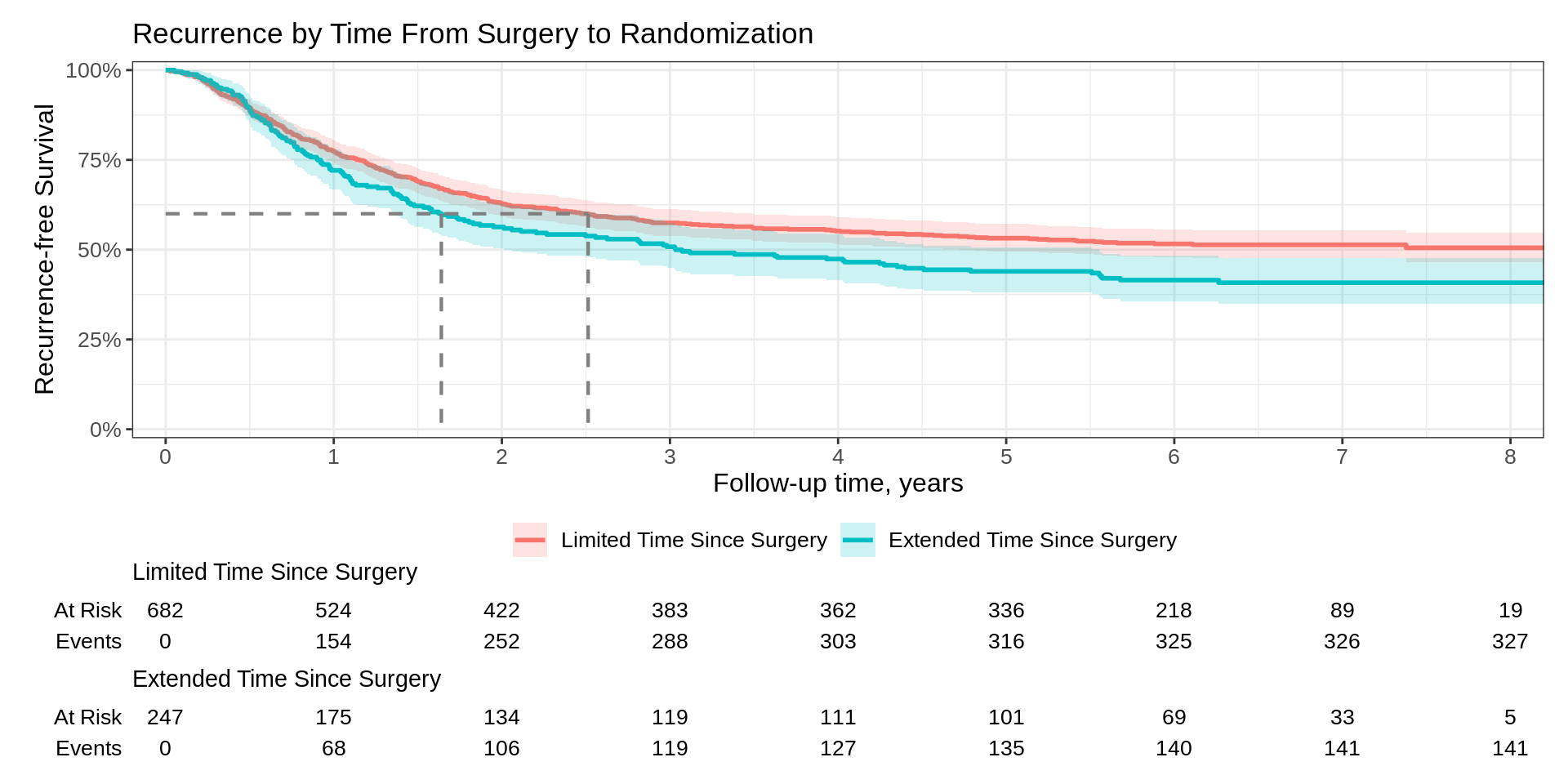

At a given timepoint

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(linewidth = 0.8) +
  add_censor_mark() +
  add_quantile(x_value = 5, linetype = "solid", linewidth = 1.0, alpha = 0.3) +
  scale_ggsurvfit()

Underyling {ggsurvfit} functions

In addition to using additional {ggplot2} functions, it is helpful to understand which underlying functions are used to create the figures.

Additional arguments can be passed to the underlying functions.

{ggsurvfit}	Underlying {ggplot2}
ggsurvfit(...)	geom_step(...)
add_confidence_interval(...)	geom_ribbon(...)
add_censor_mark(...)	geom_point(...)
add_quantile(...)	geom_segment(...)

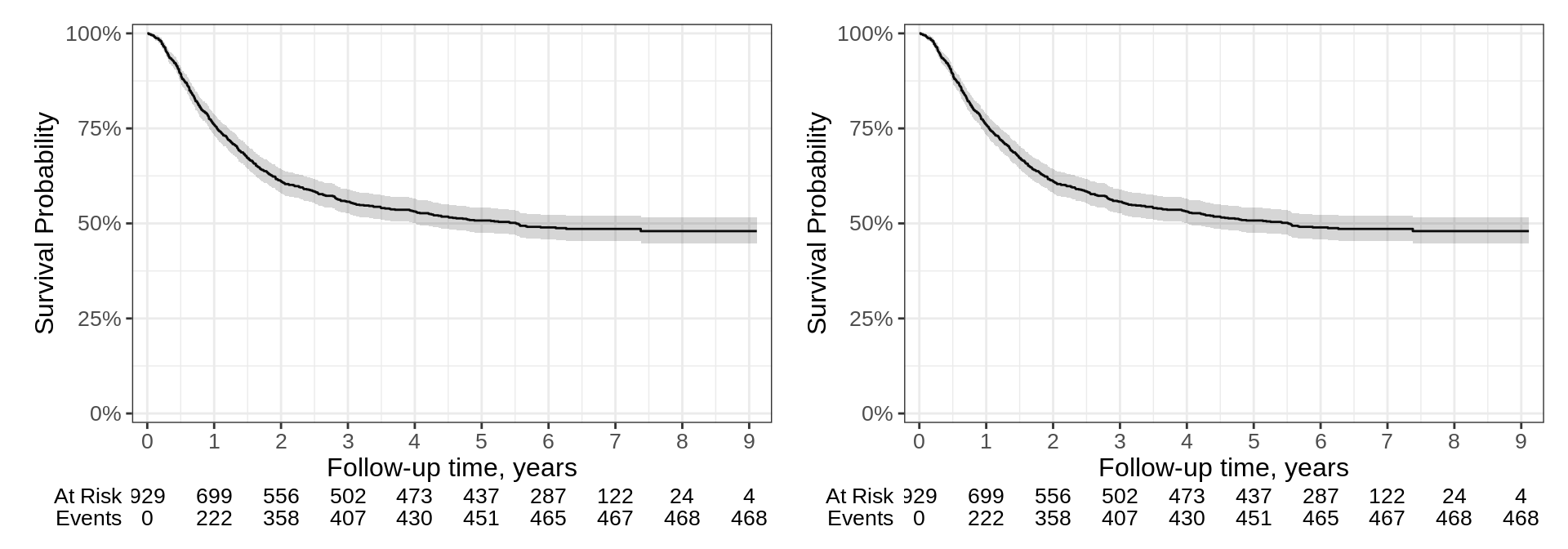

p <-
  survfit2(Surv(time, status) ~ 1,
           data = df_colon) |>
  ggsurvfit(color = "#508050") +
  add_confidence_interval(
    fill = "#508050"
  ) +
  add_censor_mark(color = "#508050",
                  alpha = 100)

INCREMENT SLIDES

Further Risktable Customization

• Here, we customize the risktable portion of the plot.

• We can style the plot area by passing ggplot2 functions to add_risktable(theme) argument.

survfit2(Surv(time, status) ~ surg, data = df_colon) %>%
  ggsurvfit(linewidth = 1) +
  add_risktable(
    risktable_height = 0.33,
    size = 4, # increase font size of risk table statistics
    theme =   # increase font size of risk table title and y-axis label
      list(
        theme_risktable_default(axis.text.y.size = 11,
                                plot.title.size = 11),
        theme(plot.title = element_text(face = "bold"))
      )
  )

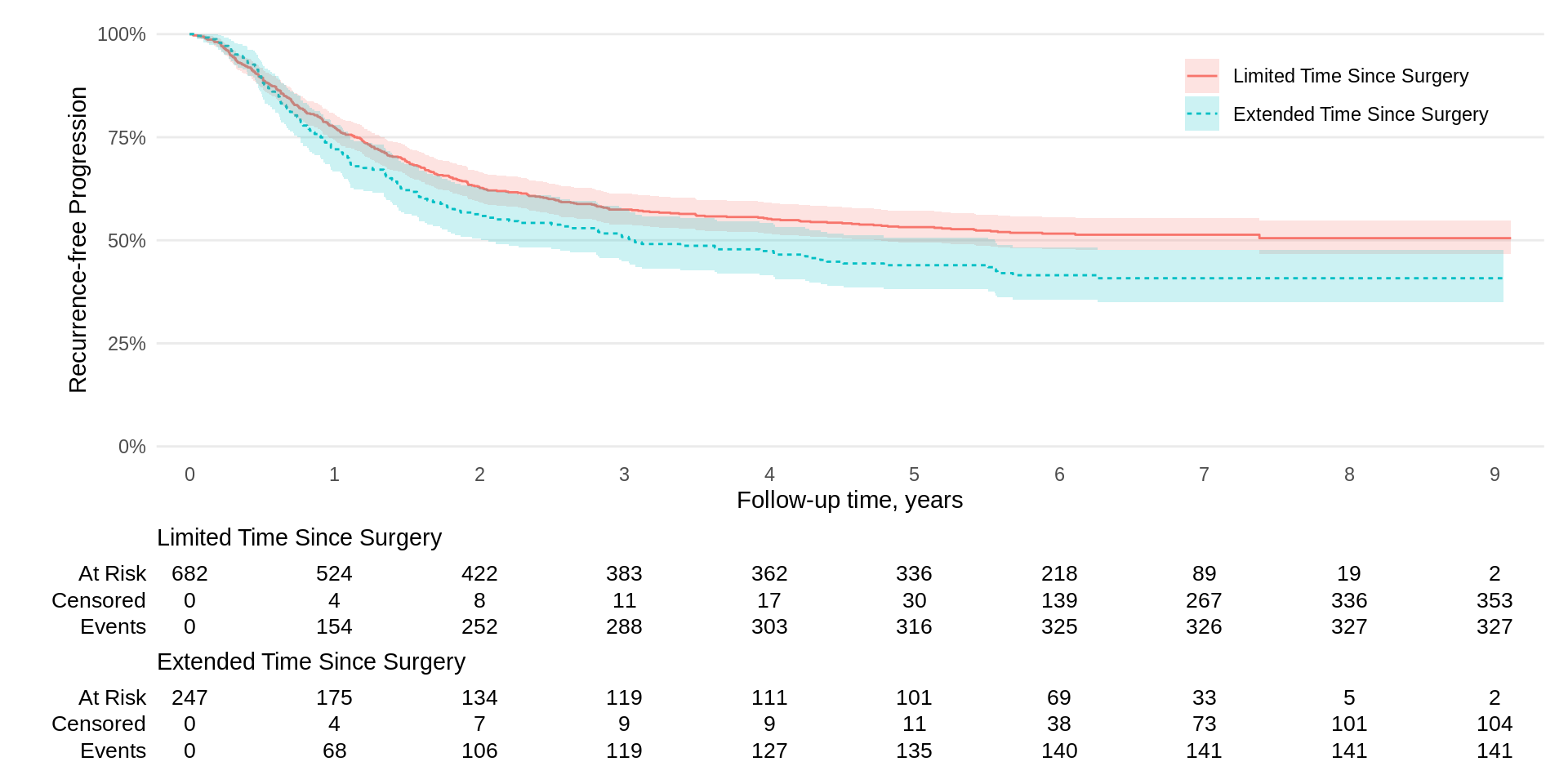

Further Risktable Customization

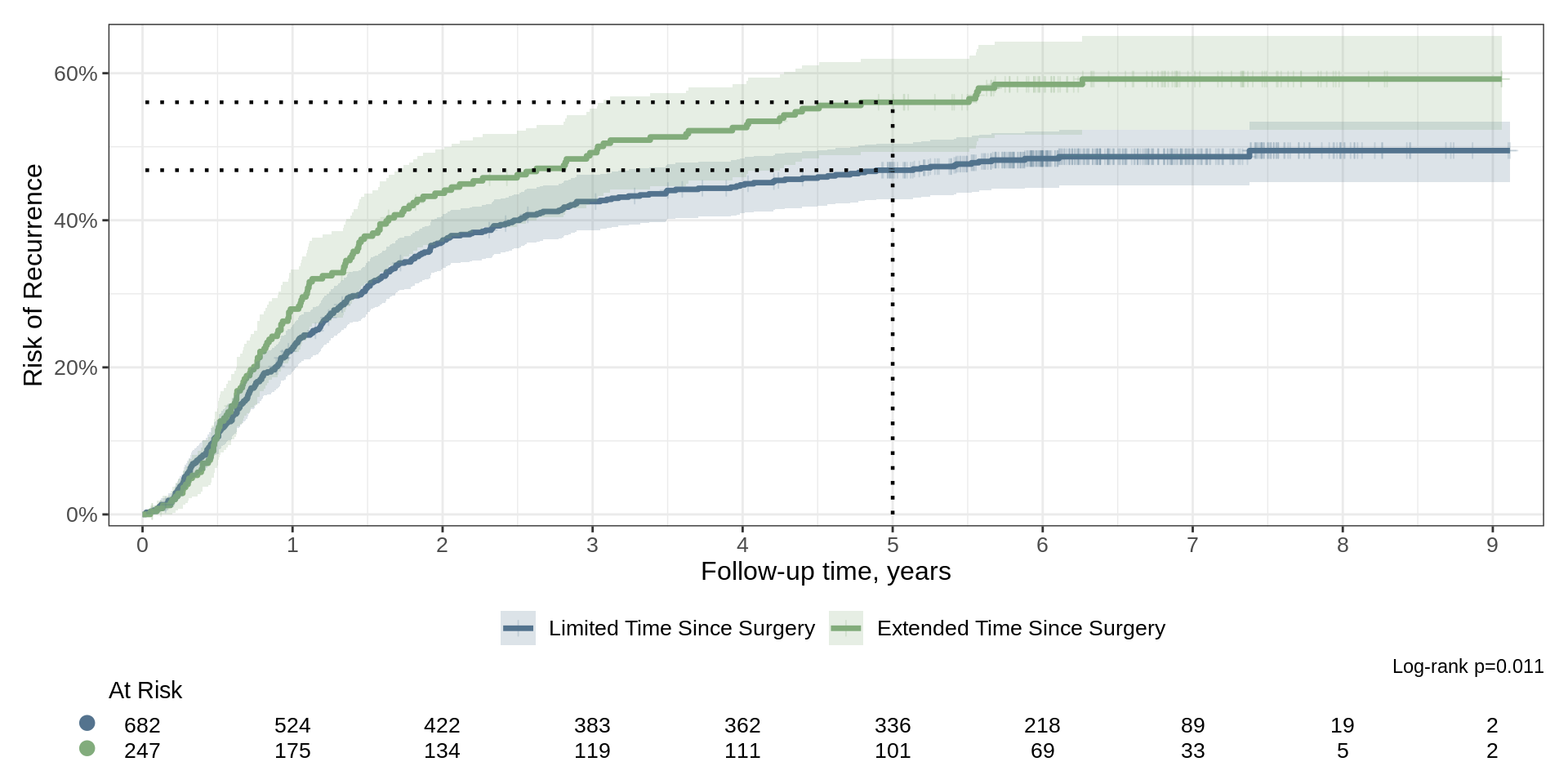

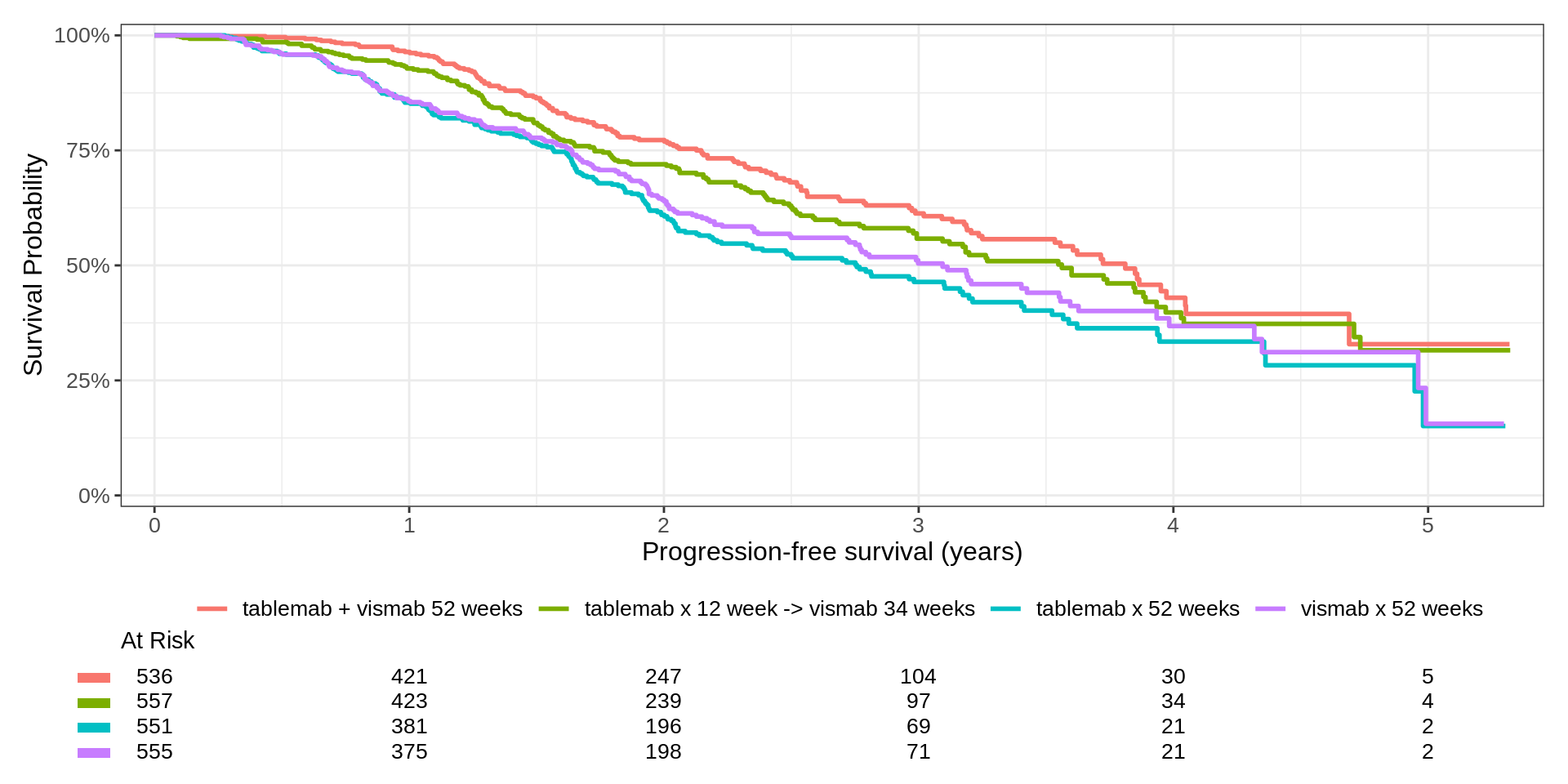

Another Example

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(type = "risk", linewidth = 1.2) +
  add_confidence_interval() +
  add_risktable(risktable_stats = "n.risk") +
  add_risktable_strata_symbol(symbol = "\U25CF", size = 17) +
  add_quantile(x_value = 5, linetype = "dotted", linewidth = 0.8) +
  add_censor_mark(size = 2, alpha = 0.2) +
  add_pvalue(caption = "Log-rank {p.value}") +
  scale_ggsurvfit() +
  scale_color_manual(values = c('#54738E', '#82AC7C')) +
  scale_fill_manual(values = c('#54738E', '#82AC7C')) +
  labs(y = "Risk of Recurrence")

INCREMENT THIS SLIDE

Another Example

KMunicate and themes

What are the elements of an effective and publishable KM plot?

There are many options to consider and many guidances available:

• Morris et al. 2018 provide useful guidance for publication figures

• To get figures that align with KMunicate use the theme_ggsurvfit_KMunicate() theme along with these function options.

A note of caution on standards:

• Design for your purpose, one size does not fit all

• Designing means you need to think carefully about your audience and aims

KMunicate

survfit2(Surv(time, status) ~ surg, data = df_colon) |>
  ggsurvfit(linetype_aes = TRUE) +
  add_confidence_interval() +
  add_risktable(risktable_stats = c("n.risk", "cum.censor", "cum.event")) +
  theme_ggsurvfit_KMunicate() +
  scale_ggsurvfit() +
  theme(legend.position = c(0.85, 0.85)) +
  labs(y = "Recurrence-free Progression")

KMunicate

CDISC ADaM ADTTE

Gems for those using the CDISC ADaM ADTTE model.

adtte |> select(PARAM, AVAL, CNSR, TRT01P) |> head(3)

# A tibble: 3 × 4
  PARAM                              AVAL  CNSR TRT01P
  <chr>                             <dbl> <dbl> <chr>
1 Progression-free survival (years) 0.824     0 vismab x 52 weeks
2 Progression-free survival (years) 3.03      1 tablemab x 12 week -> vismab 34…
3 Progression-free survival (years) 2.32      0 tablemab + vismab 52 weeks

• The outcome is coded in the OPPOSITE way we expect!😱😱
  • The Surv_CNSR() function handles the transformation for us
  • survival::Surv(time = AVAL, event = 1 - CNSR, type = "right", origin = 0)
  • This function can be used anywhere: use it! Don’t screw it up!
• The “PARAM” value is used to construct enhanced labels in the figure.

CDISC ADaM ADTTE

survfit2(Surv_CNSR() ~ TRT01P, adtte) |>
  ggsurvfit(size = 1) +
  scale_ggsurvfit() +
  add_risktable(risktable_stats = "n.risk") +
  add_risktable_strata_symbol()

Competing Risks

• There is another flavor of survival data referred to as competing risks data.

• The most common type of a competing risk is an event that drives the probability of observing our event of interest to zero.

• For example, if we are interested in model the time from a treatment to a disease’s return or recurrence…what do we do if a patient passes away from an unrelated cause?

• In this case, death from other causes is a competing event.

• The {ggsurvfit} package plays nicely with the {tidycmprsk} package for competing risks analysis.

Well that sounds confusing!

Competing Risks

tidycmprsk::cuminc(Surv(ttdeath, death_cr) ~ trt, tidycmprsk::trial) |>
  ggcuminc(outcome = "death from cancer") +
  add_confidence_interval() +
  add_risktable() +
  scale_ggsurvfit(x_scales = list(breaks = seq(0, 24, by = 6)))

Side-by-Side

• You’ll often need to place two or more figures side-by-side

• My favorite package to do this is {patchwork}

• But before you can use {patchwork} with {ggsurvfit}, you need to understand a bit about how these figures are constructed

  • The risktables are only added to the figure during printing by calling the ggsurvfit_build() function

  • This means that you must build the plot before you can cobble figures together

• I have an open issue in {patchwork} to add a feature so we can avoid this extra step

Side-by-Side

p <- survfit2(Surv(time, status) ~ 1, df_colon) %>%
  ggsurvfit() +
  add_confidence_interval() +
  add_risktable() +
  scale_ggsurvfit()

# build plot (which constructs the risktable)
built_p <- ggsurvfit_build(p) |> patchwork::wrap_plots()

# I am hoping in the future was can just call `p | p`
built_p | built_p

{ggsurvfit} wrap up

• Ease the creation of time-to-event summary figures with ggplot2

• Concise and modular code

• Ready for publication or sharing figures

• Sensible defaults

• Also supports competing risks cumulative incidence summaries
