Provides stairstep values for ribbon plots


  mapping = NULL,
  data = NULL,
  geom = "ribbon",
  position = "identity",
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE,
  direction = "hv",



An object of class StatStepRibbon (inherits from Stat, ggproto, gg) of length 3.



Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.


The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).


which geom to use; defaults to "ribbon"


Position adjustment, either as a string naming the adjustment (e.g. "jitter" to use position_jitter), or the result of a call to a position adjustment function. Use the latter if you need to change the settings of the adjustment.


If FALSE, the default, missing values are removed with a warning. If TRUE, missing values are silently removed.


logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display.


If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. borders().


hv for horizontal-vertical steps, vh for vertical-horizontal steps


Other arguments passed on to layer(). These are often aesthetics, used to set an aesthetic to a fixed value, like colour = "red" or size = 3. They may also be parameters to the paired geom/stat.


a ggplot2 figure

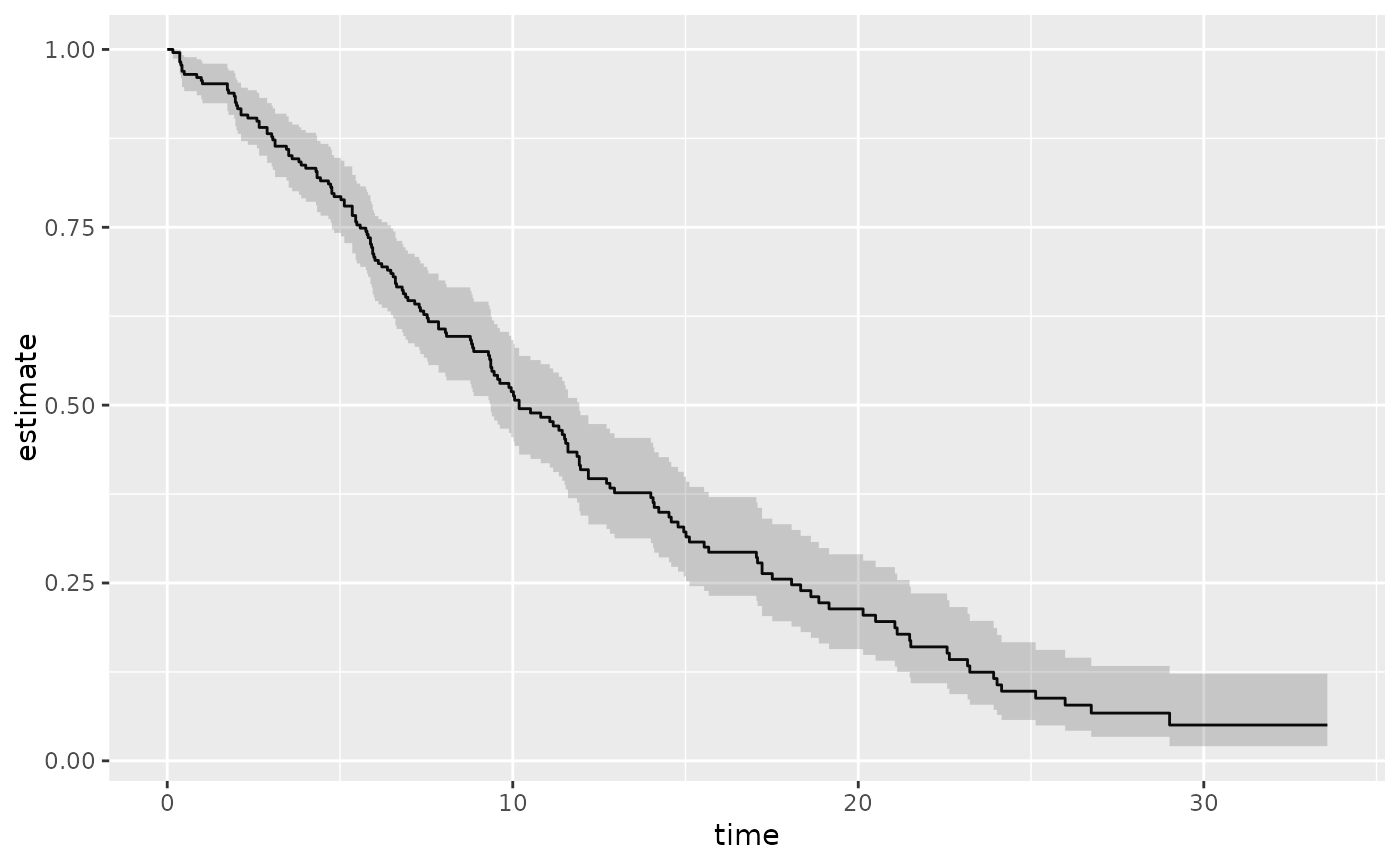

survfit(Surv(time, status) ~ 1, data = df_lung) %>%
  survival::survfit0() %>%
  broom::tidy() %>%
  ggplot(aes(x = time, y = estimate, ymin = conf.low, ymax = conf.high)) +
  geom_step() +
  geom_ribbon(stat = "stepribbon", alpha = 0.2)
